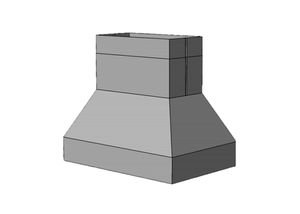

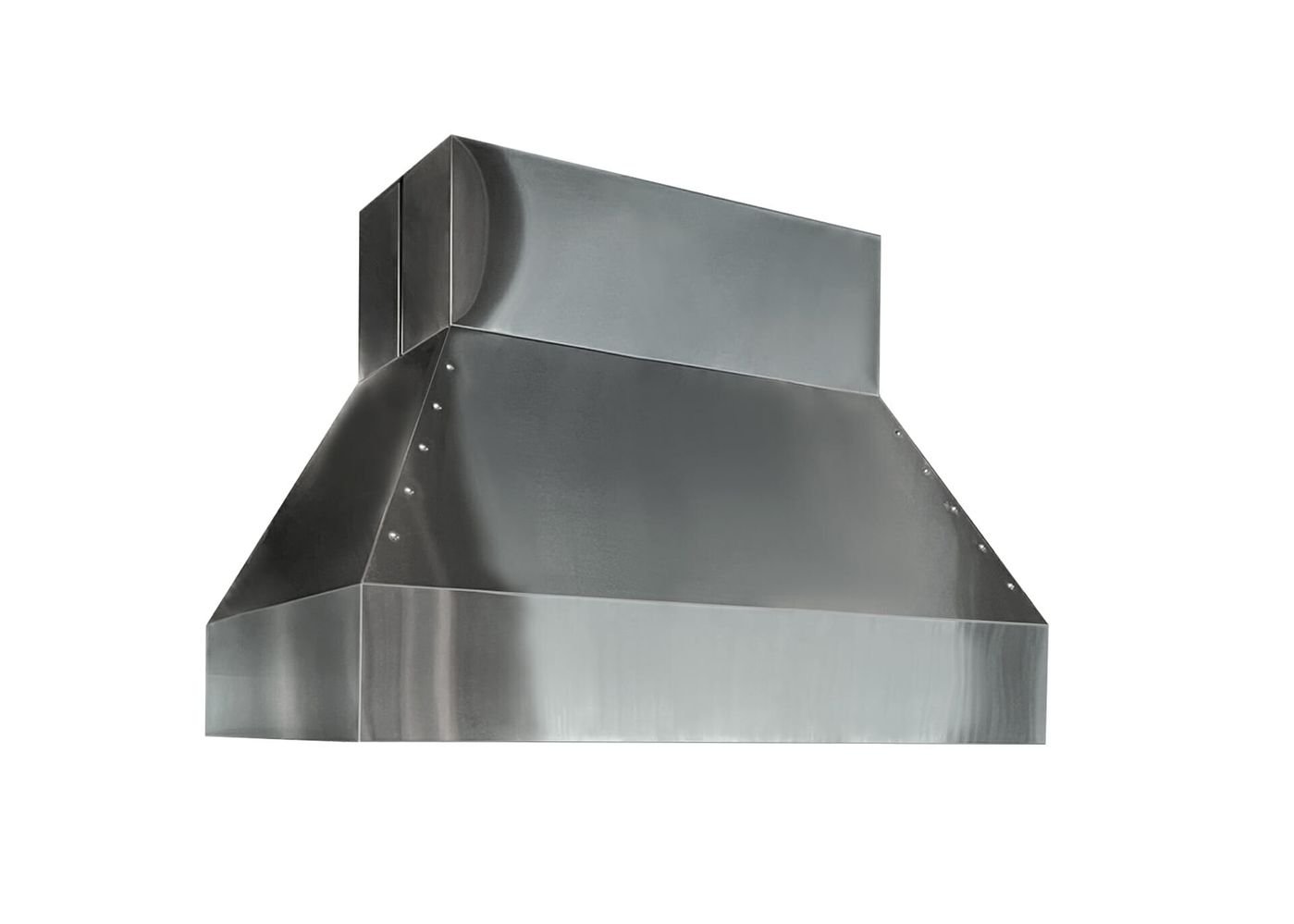

P7200 Series Island Style Outdoor
Configure Your Hood
| Model | WIDTH | CFM / IN-LINE BLOWER (NOT INCLUDED) | DUCT COLLAR |
|---|---|---|---|
| P7248-ISL | 48″ | In-Line Blower (not included) | 10″ |
| P7248-12-ISL | 48″ | CFM 1200 | 10″ |
| P7260ISL | 60″ | In-Line Blower (not included) | 2" x 10″ |
| P7260-23ISL | 60″ | CFM 2300 | 2" x 10″ |
Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.
Double bank of baffle filters allows for the largest active capture area in
outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.
Cool touch knarled knobs for easy control.
All 24” bodied hoods easily convert from vertical discharge to horizontal at job site
48" & 60" Width

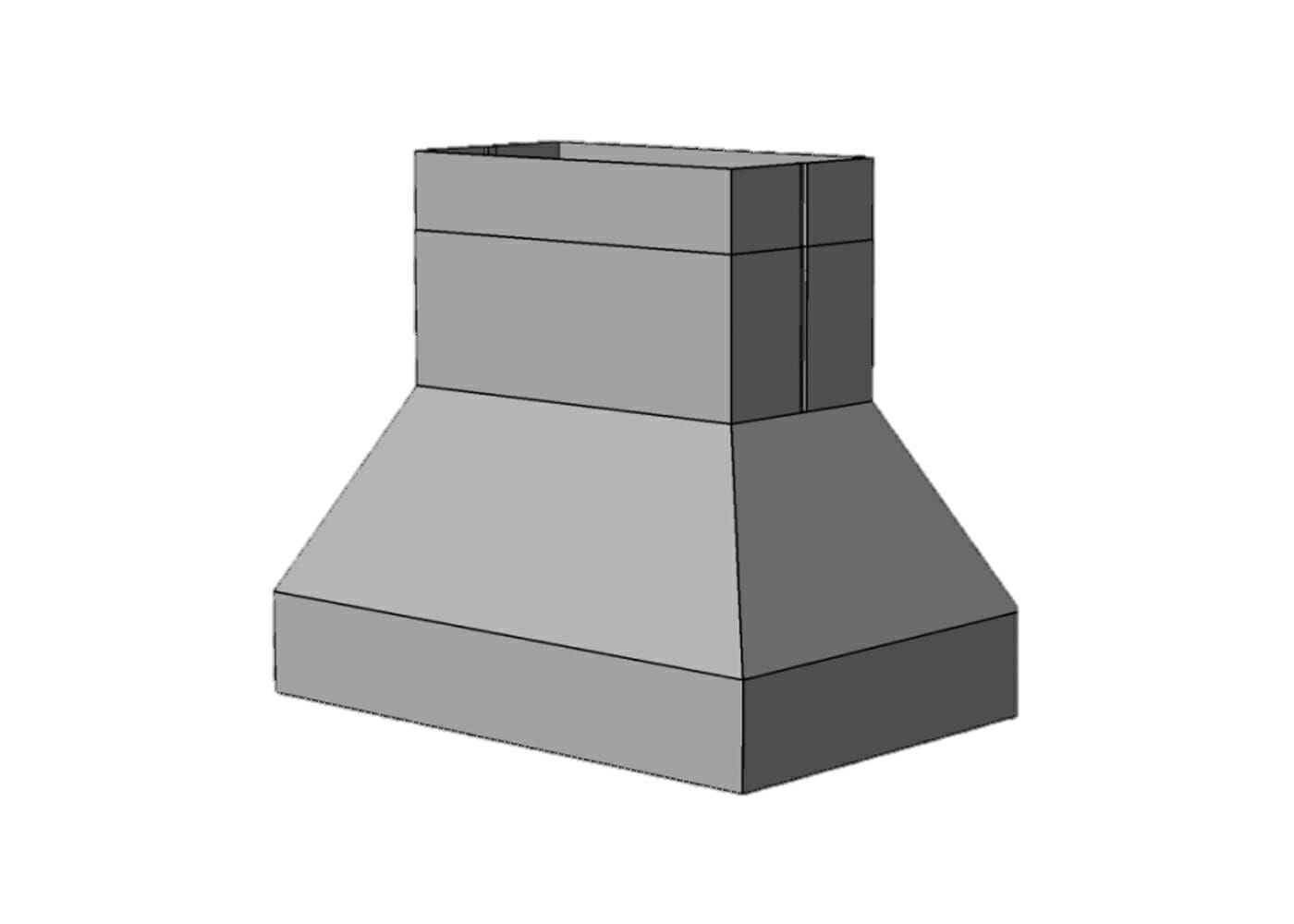

Pyramid: 16″ deep at top, 32″ deep at bottom
Generously proportioned 32” depth of hood provides an exceptional capture area
Powerful internal blowers deliver 1200 CFM (on 48") and 2300 CFM (on 60")
Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)
Dimmable 50 watt halogen lights
Four 12” by 14” baffle filters for enhanced performance
Design of the stainless steel commercial baffle filters adds a professional image

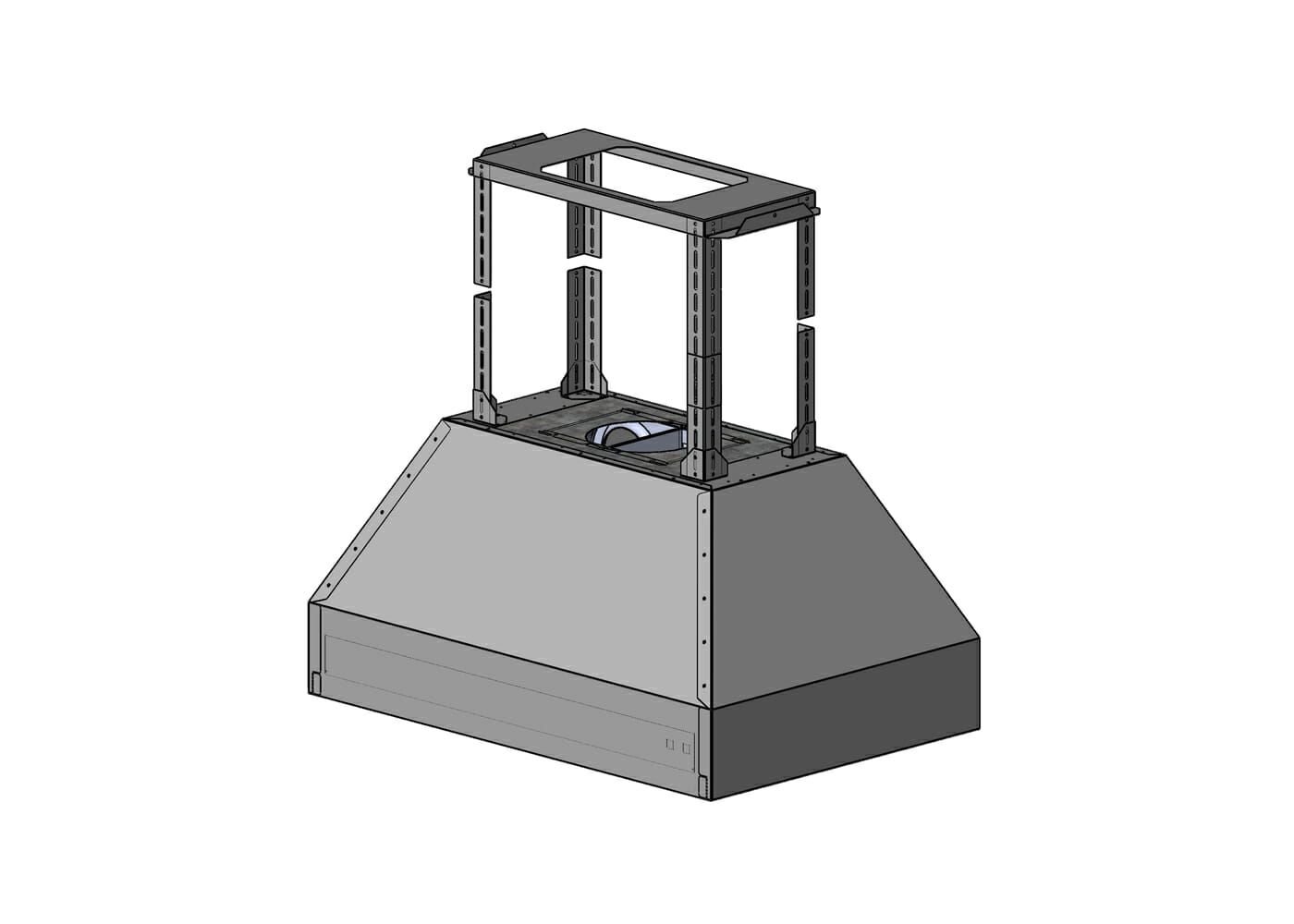

Telescopic duct cover (2 piece) provided for adjustment up to 10′ ceilings
- Remote blower models are pre-wired for use with most in-line or exterior blowers
- Hoods with internal blowers are all pre-wired and ready for installation
- Top only 10” round discharge only
- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel exterior design is easy to keep clean and eliminates grease traps
