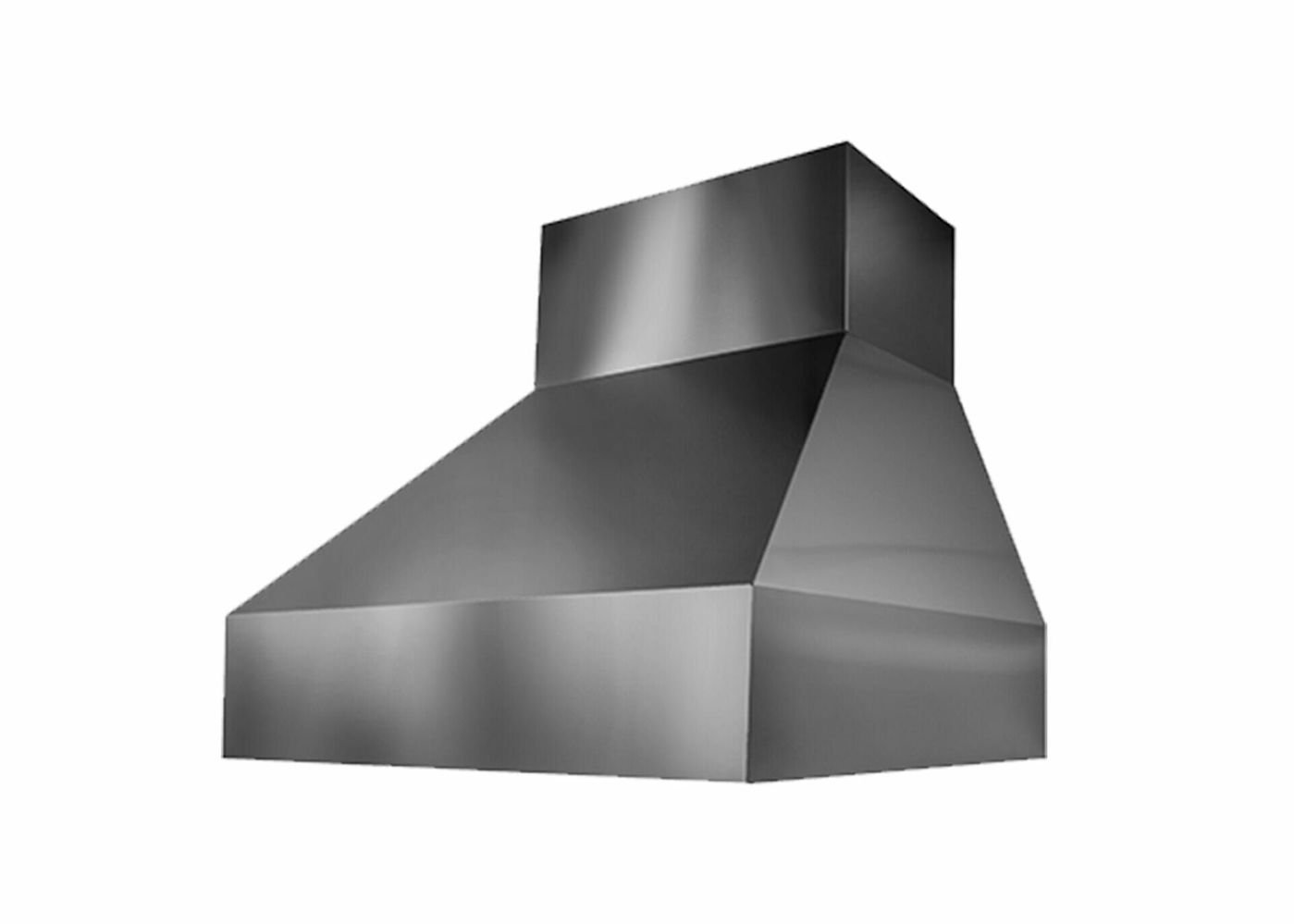

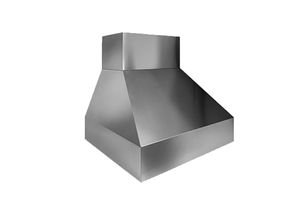

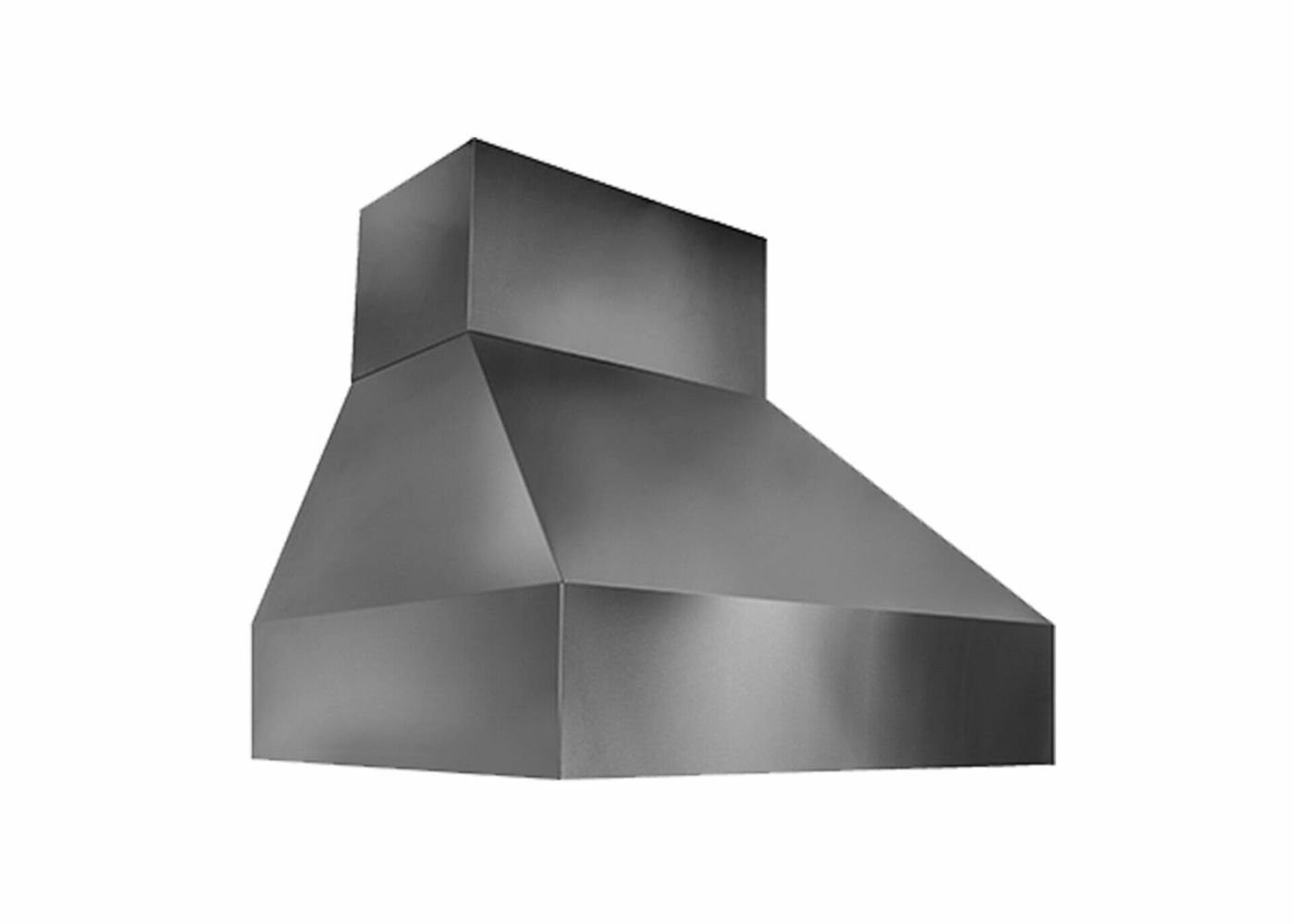

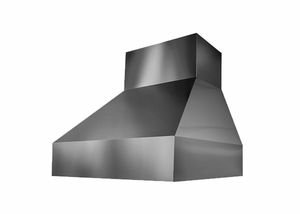

P7200 Series Pyramid Style
Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.

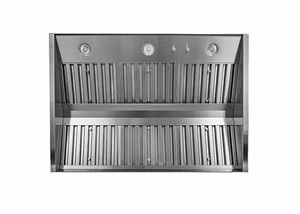

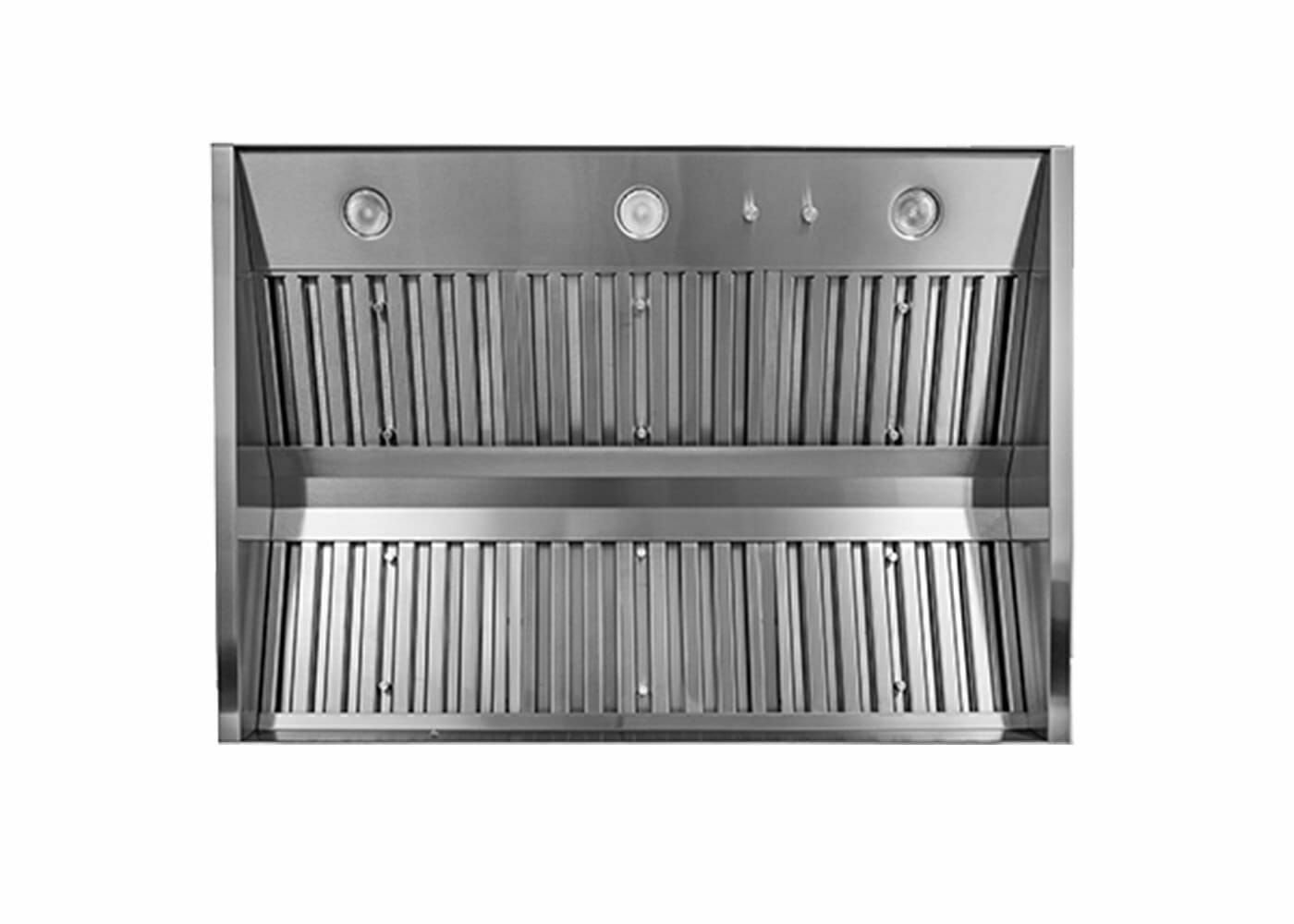

Double bank of baffle filters allows for the largest active capture area in
outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.
Cool touch knarled knobs for easy control.
All 24” bodied hoods easily convert from vertical discharge to horizontal at job site
36”, 42”, 48″, 60″ & 72″
Two or four internal sealed motors deliver 1200 CFM or 2300 CFM
Optional in-line blowers deliver 1266 CFM
Heavy gauge commercial stainless steel (#304 grade, 22-gauge)
Dimmable 50 watt halogen lights
Four 12” by 14” baffle filters improve performance (six filters on the larger model)
Design of the stainless steel commercial baffle filters adds a professional appearance and improves the performance
Generously proportioned 32” depth of hood bottom, 15″ depth at top, 24″ high, provides an exceptional capture area
| Model | WIDTH | CFM / IN-LINE BLOWER (NOT INCLUDED) | DUCT COLLAR |
|---|---|---|---|
| P7236 | 36" | In-Line Blower (not included) | 10" |
| P7236-12 | 36" | CFM 1200 | 10" |
| *P723612EXT | 36" | CFM 1200 | 10" |
| P7242 | 42" | In-Line Blower (not included) | 10" |
| P7242-12 | 42" | CFM 1200 | 10" |
| *P724212EXT | 42" | CFM 1200 | 10" |
| P7248 | 48" | In-Line Blower (not included) | 10" |
| P7248-12 | 48" | CFM 1200 | 10" |
| *P724812EXT | 48" | CFM 1200 | 10" |
| P7260 | 60" | In-Line Blower (not included) | 2" X 10" |
| P7260-23 | 60" | CFM 2300 | 2" X 10" |
| P7272 | 72" | In-Line Blower (not included) | 2" X 10" |
| P7272-23 | 72" | CFM 2300 | 2" X 10" |
*EXT MODELS COME WITH TELESCOPIC DUCT COVER TO 12′ CEILING
- Remote blower models are pre-wired for use with most in-line or exterior blowers
- Hoods with internal blowers are all pre-wired and pre-assembled
- Top 10” round discharge, two 10” on larger models. (For rear discharge, change blowers’ orientation)
- 2 piece, telescopic Duct Cover provided for adjustment up to 10′ ceiling, optional Duct Cover for up to 12′ ceiling is available
- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel exterior design is easy to keep clean and eliminates grease traps
