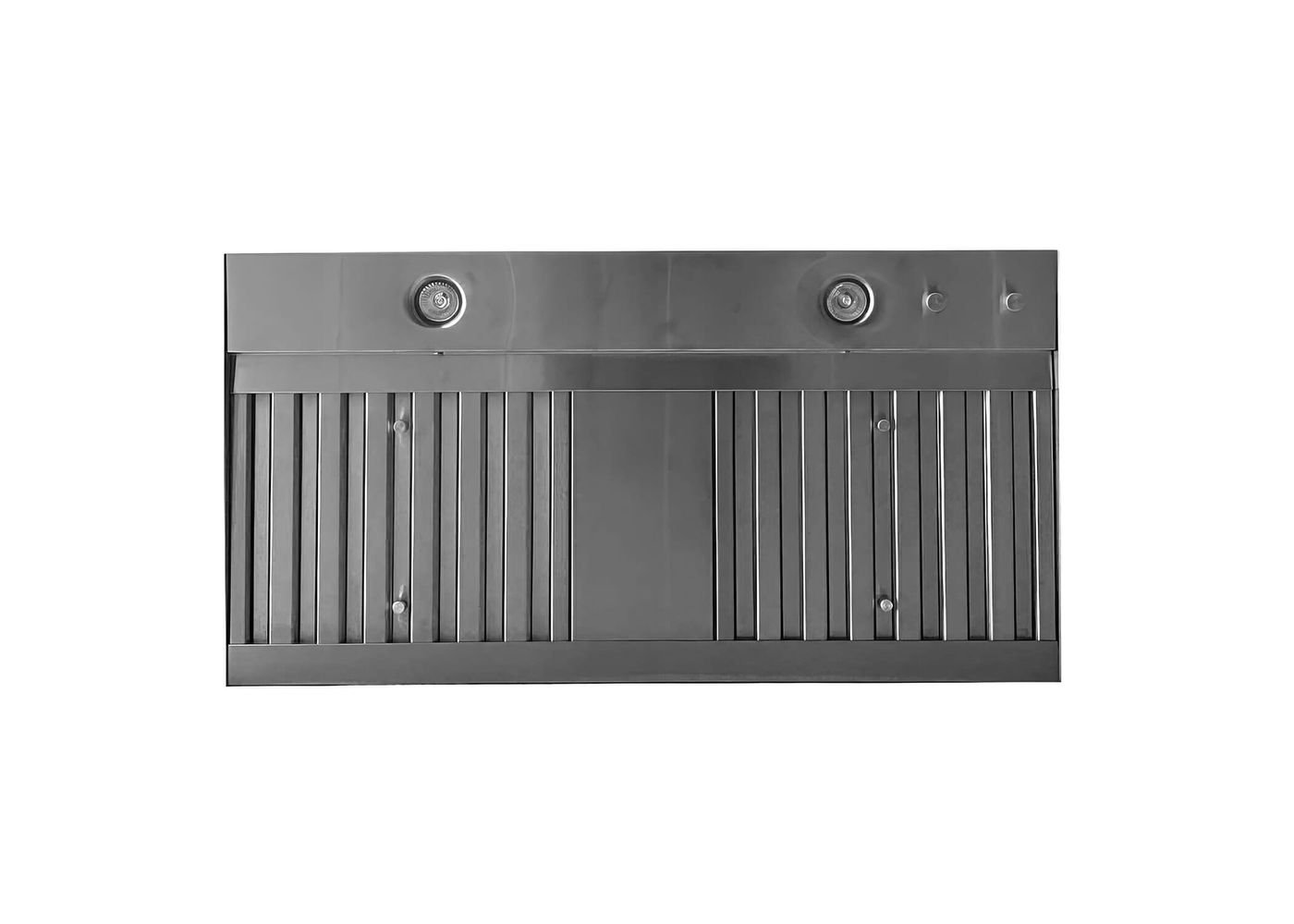

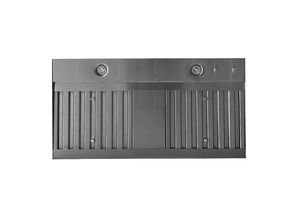

VSL400 BF Designer Series

Configure Your Hood

Select Your Model
Product Features
Lighting

2 or 3 LED lights brighten cooking area (depending on model).

Enduring Quality

Commercial grade stainless steel (#304, 24-gauge) and galvanized steel construction.

Quiet Operation

Sound absorbing duct silencers, Neoprene® lined sound absorbing fast clamps & dampers available. Variable motor control reduces blower and air movement sound.

Built for Performance

Large stainless steel baffle filters reduce air movement sound and improve ventilation performance.

Ease of Use

Metallic control knobs on all variable speed in-line blower models.

Specifications
Models:

28 ⅜”, 34 ⅜”, 40 ⅜”, 46 ⅜”, 52 ⅜”, 58 ⅜” & 70 ⅜”

CFM:

In-line blowers deliver 836 CFM or 1266 CFM

MATERIAL:

Commercial grade stainless steel (#304, 24-gauge) and galvanized steel construction

FILTERS:

Large baffle filters improve ventilation performance

INSTALLATION:

Remote blower models pre-wired for use with most in-line or exterior blowers. Installs easily in standard size or custom built wood range hoods.

Compare Models
Model WIDTH X DEPTH IN-LINE BLOWER DUCT COLLAR
VSL430BF 28 ⅜" x 18" Not Included 8"
VSL436BF 34 ⅜" x 18" Not Included 8"
VSL436-0-19BF 34 ⅜" x 19 ¼" Not Included 8"
VSL436-0-22BF 34 ⅜" x 22" Not Included 8"
VSL442BF 40 ⅜" x 18" Not Included 10"
VSL442-0-19BF 40 ⅜" x 19 ¼" Not Included 10"
VSL442-0-22BF 40 ⅜" x 22" Not Included 10"
VSL448-0-19BF 46 ⅜" x 19 ¼" Not Included 10"
VSL448BF 46 ⅜" x 18" Not Included 10"
VSL448-0-22BF 46 ⅜" x 22" Not Included 10"
VSL454BF 52 ⅜" x 18" Not Included 10"
VSL454-0-19BF 52 ⅜" x 19 ¼" Not Included 10"
VSL454-0-22BF 52 ⅜" x 22" Not Included 10"
VSL460BF 58 ⅜" x 18" Not Included 10"
VSL460-0-19BF 58 ⅜" x 19 ¼" Not Included 10"
VSL460-0-22BF 58 ⅜" x 22" Not Included 10"
VSL472BF 70 ⅜" x 18" Not Included 10"
VSL472-0-19BF 70 ⅜" x 19 ¼" Not Included 10"
VSL472-0-22BF 70 ⅜" x 22" Not Included 10"
100% Performance Tested

3-year parts & labor warranty on every Trade-Wind® product.

Installation and Care
  • Remote blower models pre-wired for use with most in-line or exterior blowers
  • Installs easily in standard size or custom built wood range hoods
  • Dishwasher safe commercial baffle filters
  • Easy cleaning; no unsightly screws to clean around
