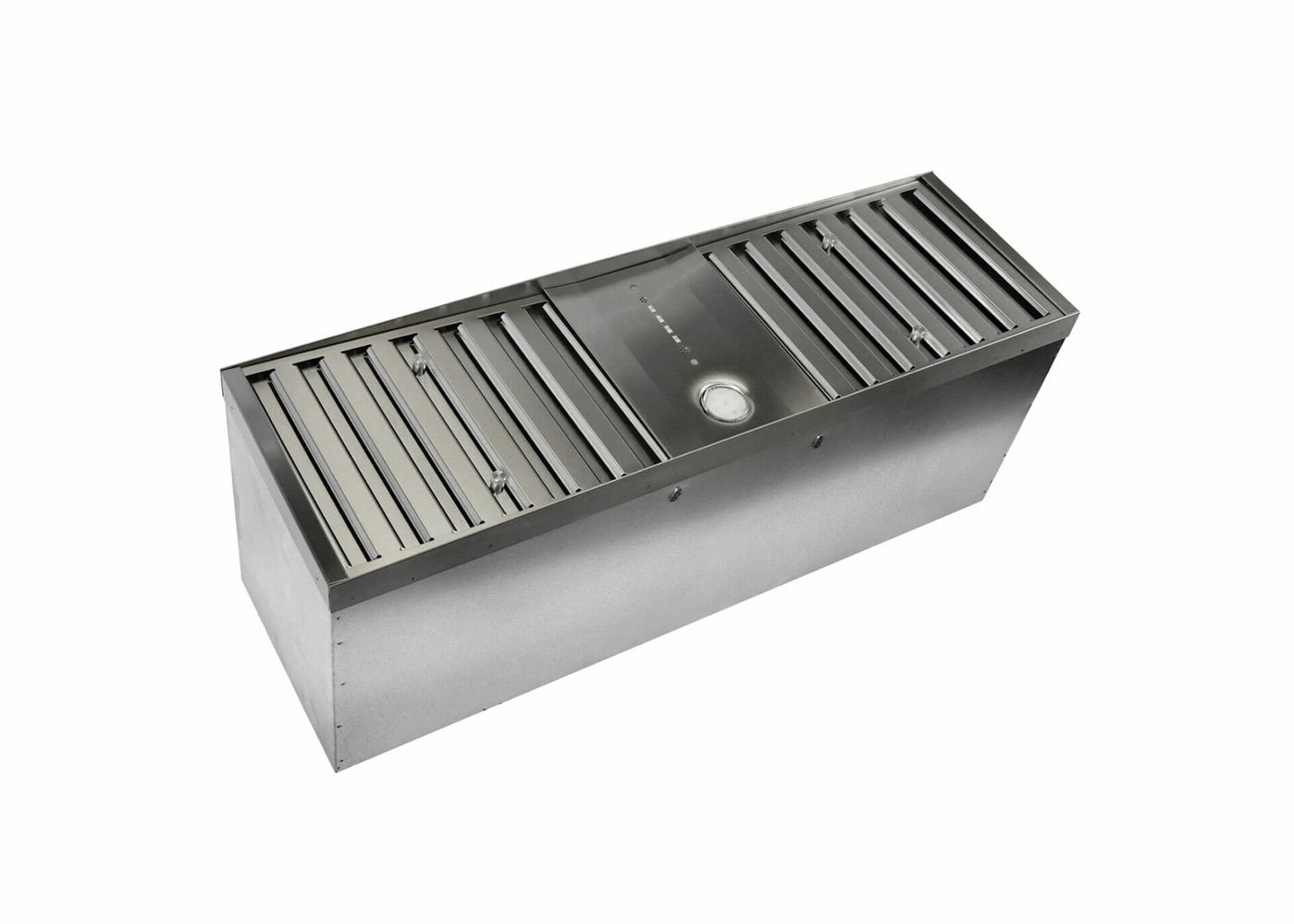

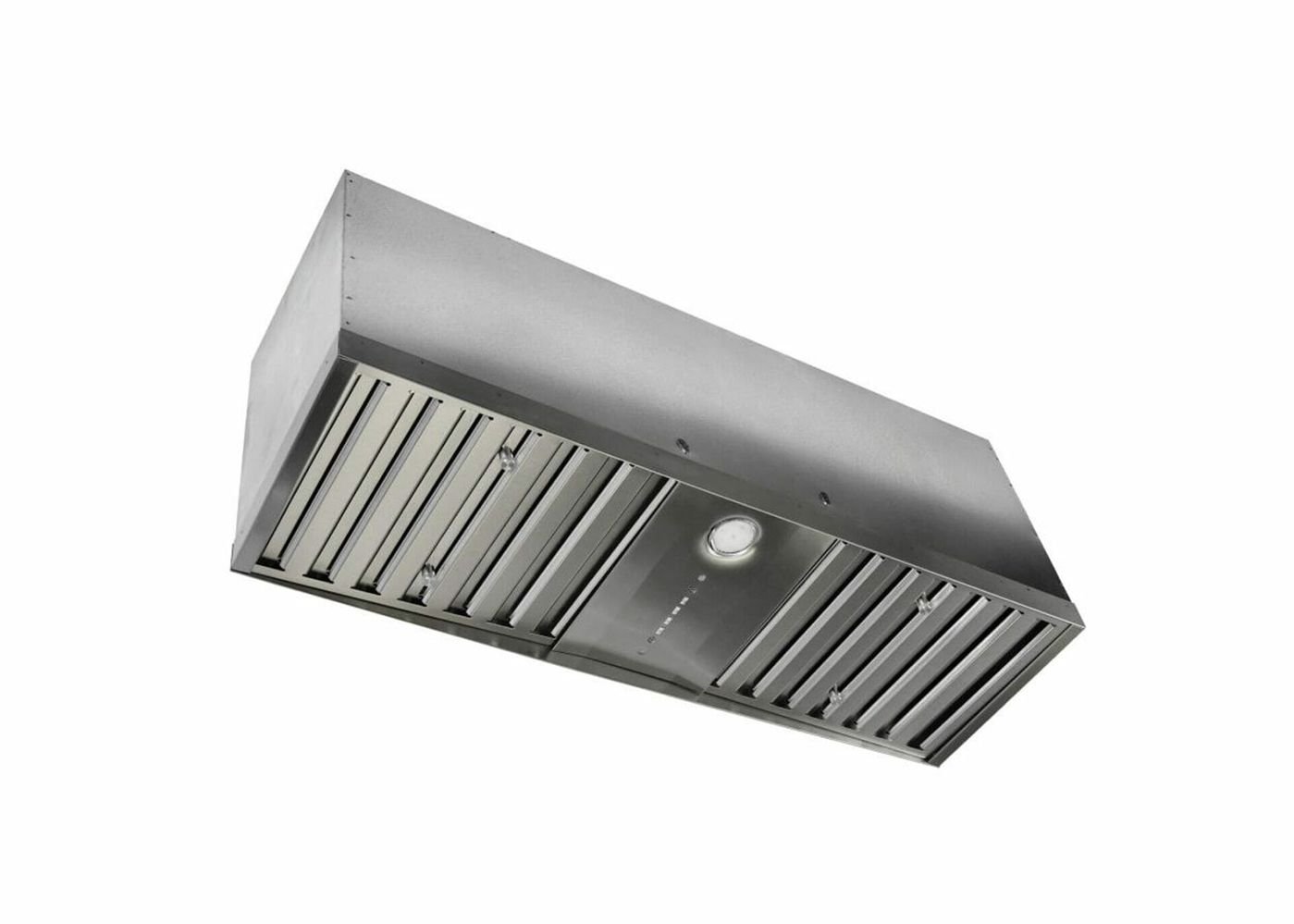

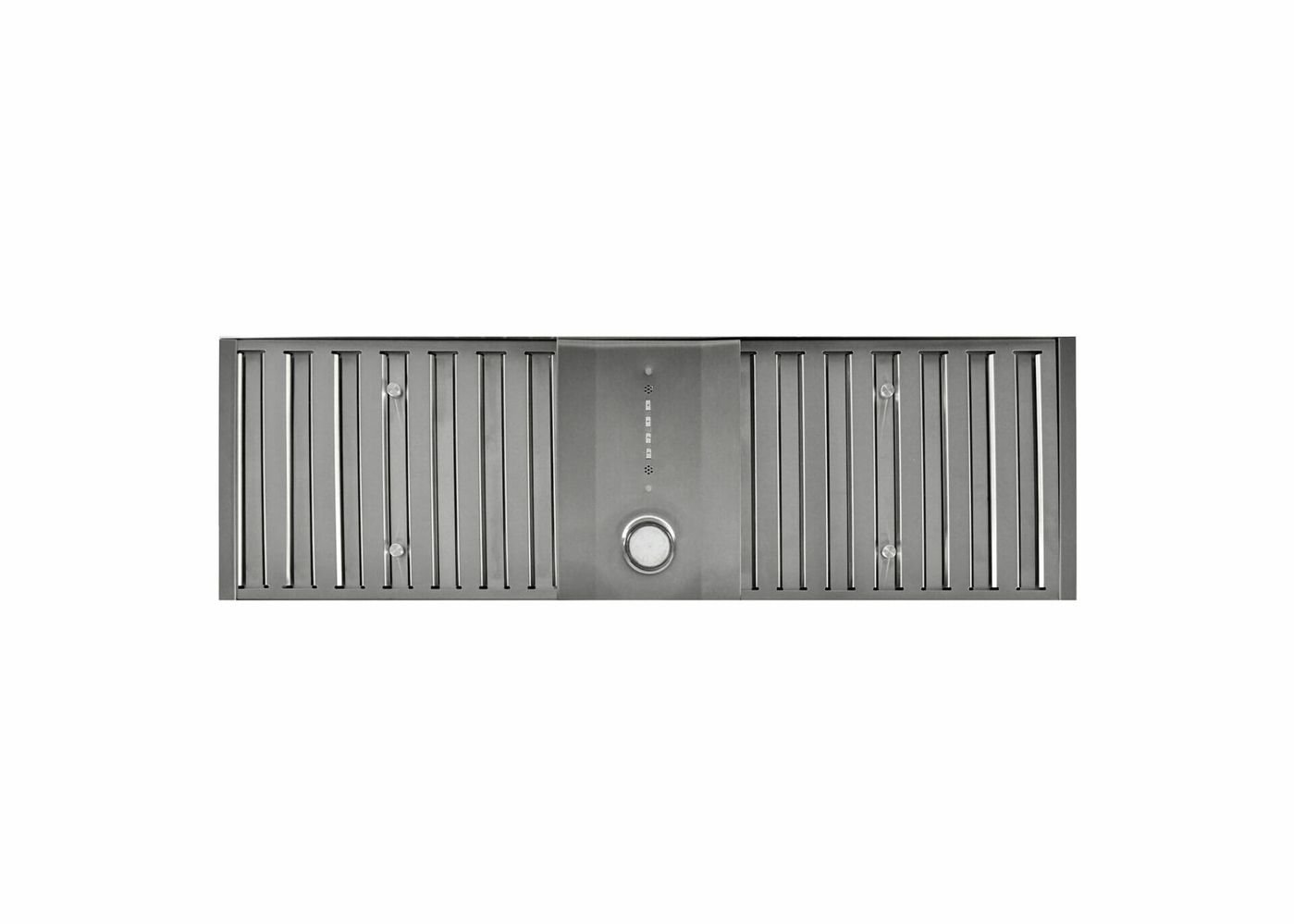

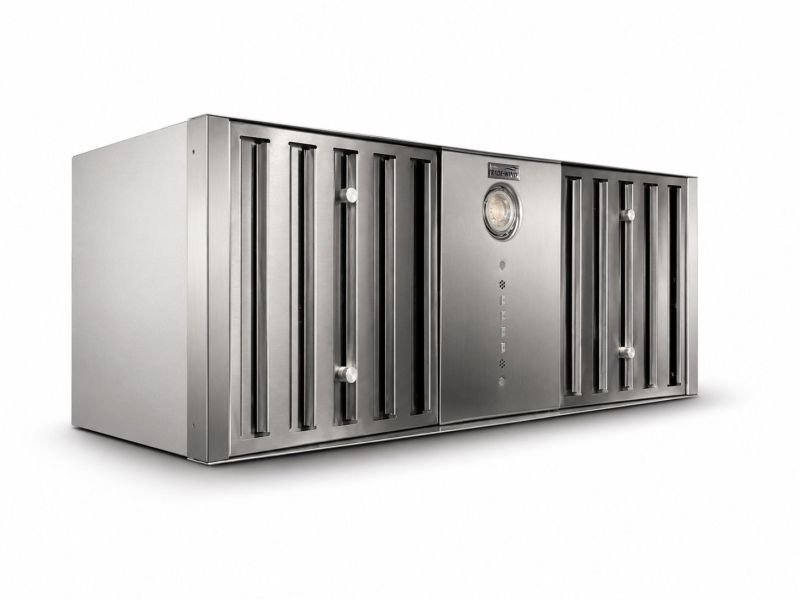

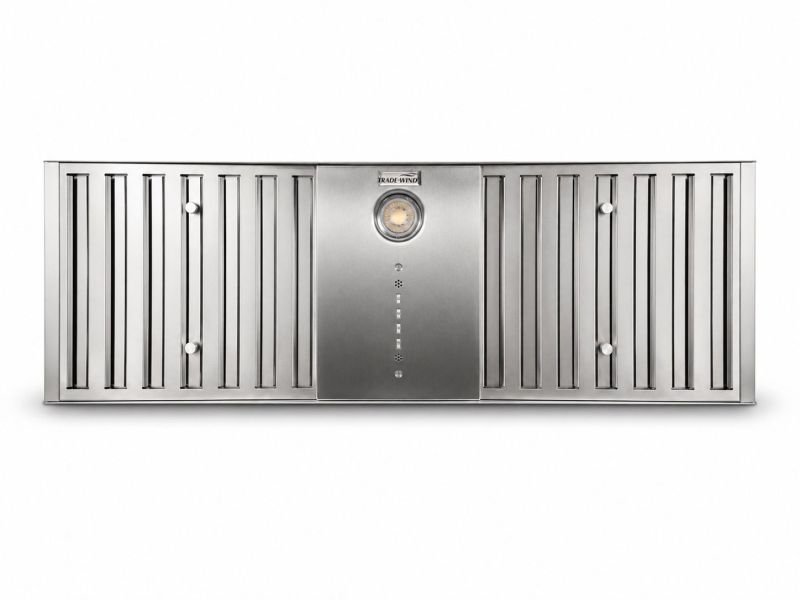

I3200 Insert Style Series - 10.5"
Configure Your Hood
| Model | WIDTH | CFM | DUCT OPENING |
|---|---|---|---|
| I32302RC | 28 ⅜" | 290 | 6" |
| I32303RC | 28 ⅜" | 390 | 7" |
| I32362RC | 34 ⅜" | 290 | 6" |
| I32363RC | 34 ⅜" | 390 | 7" |
| I32366RC | 34 ⅜" | 600 | 8" |

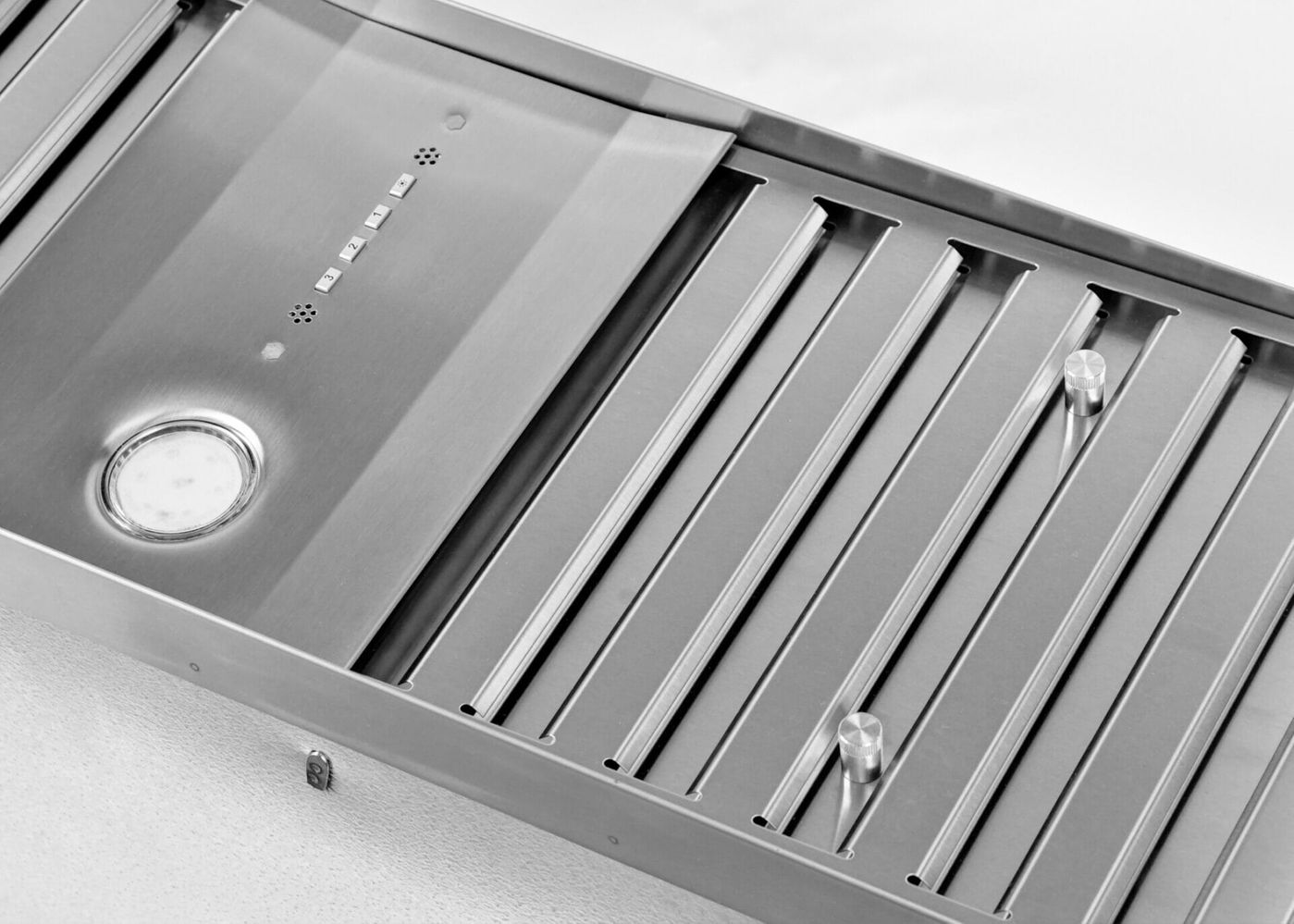

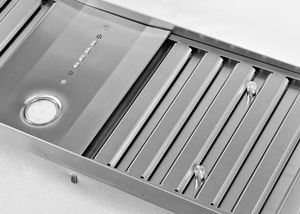

Recessed controls and LED lights. Button and light glare are hidden from the front. The LED light brightens cooking area, equivalent to 50W Halogen.
Commercial grade stainless steel (#304 with #4 brush finish)
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.

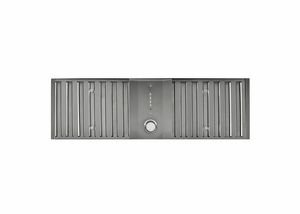

2 stainless steel baffle filters reduce air movement sound and improve ventilation performance.
Electronic touch controls with blue LED back lighting, with new remote control.
28 ⅜” & 34 ⅜”
Internal motor models deliver 290 CFM (code compliant), 390 CFM (code compliant) or 600 CFM
Commercial grade stainless steel (#304 with #4 brush finish)
Two stainless steel baffle filters improve performance

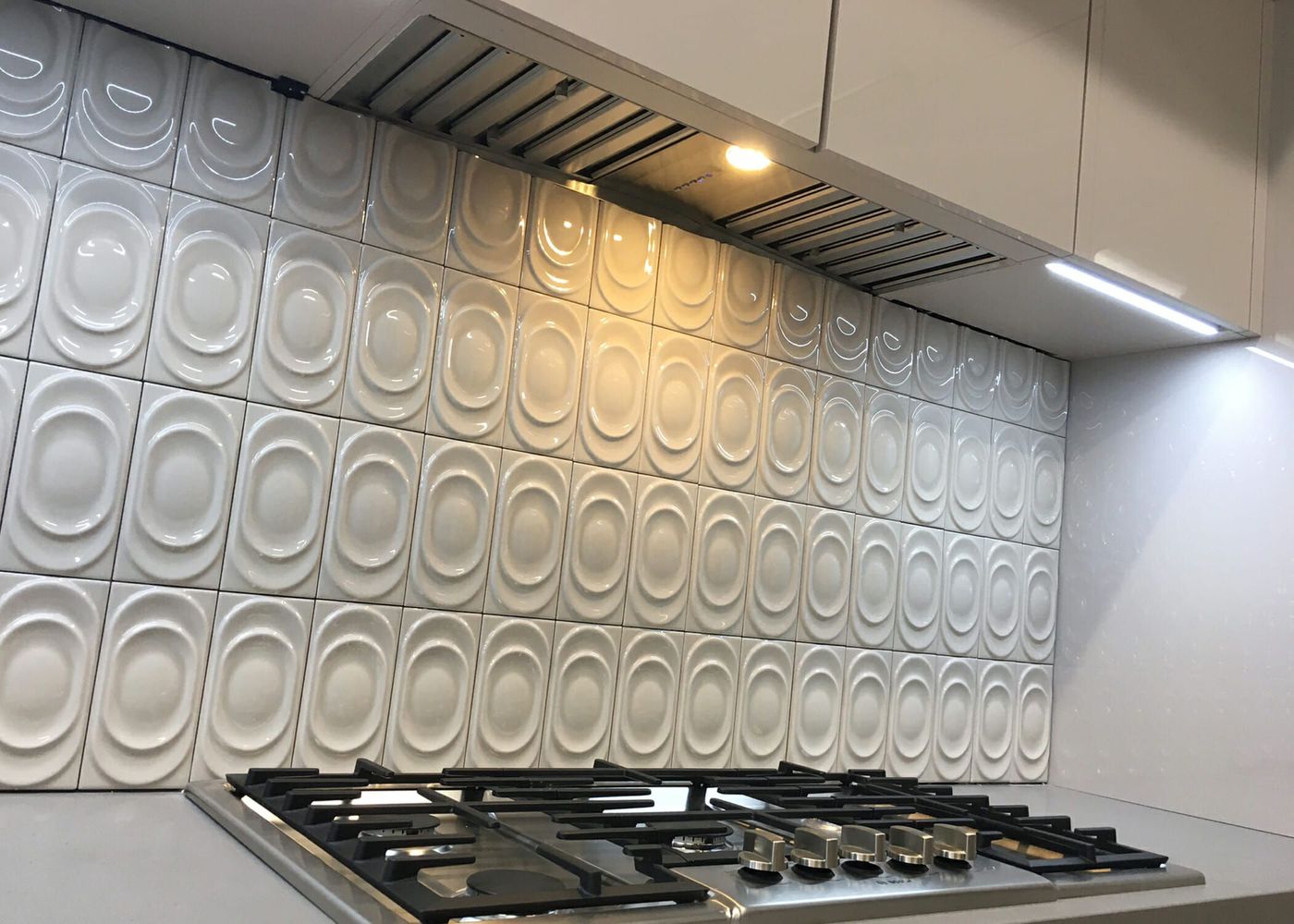

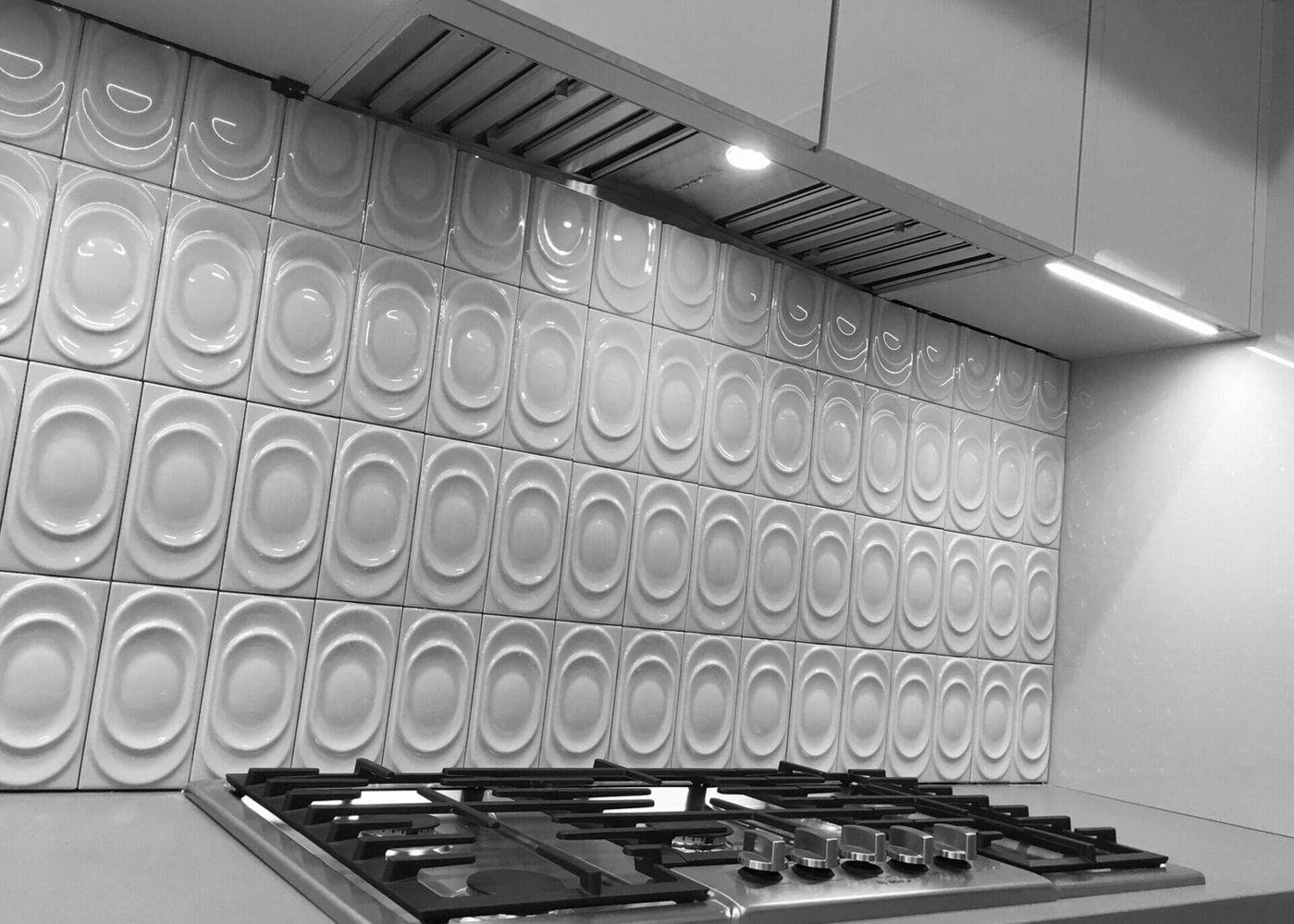

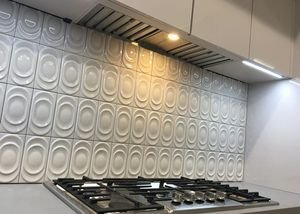

Installs easily in standard size cabinet openings.
Exhausts out the top with a 6″, 7″, or 8″ round discharge opening (size of ducting is dependent on blower CFM specification selected).
- Installs easily in a standard 12-inch upper cabinet
- Dishwasher safe commercial baffle filters
- Easy cleaning; no unsightly screws to clean around
