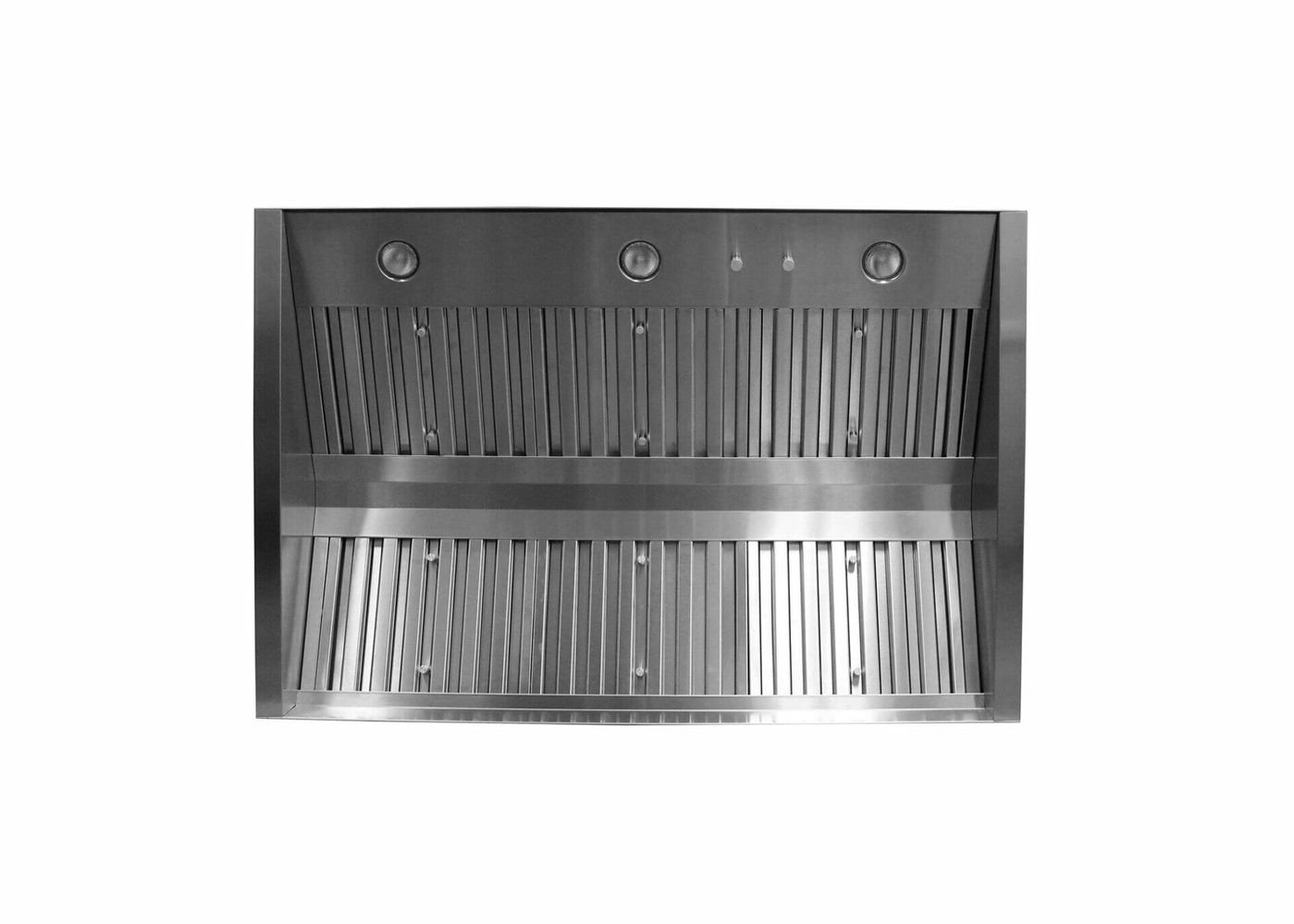

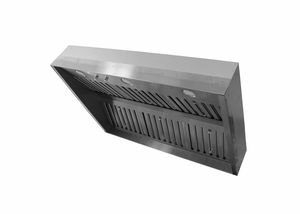

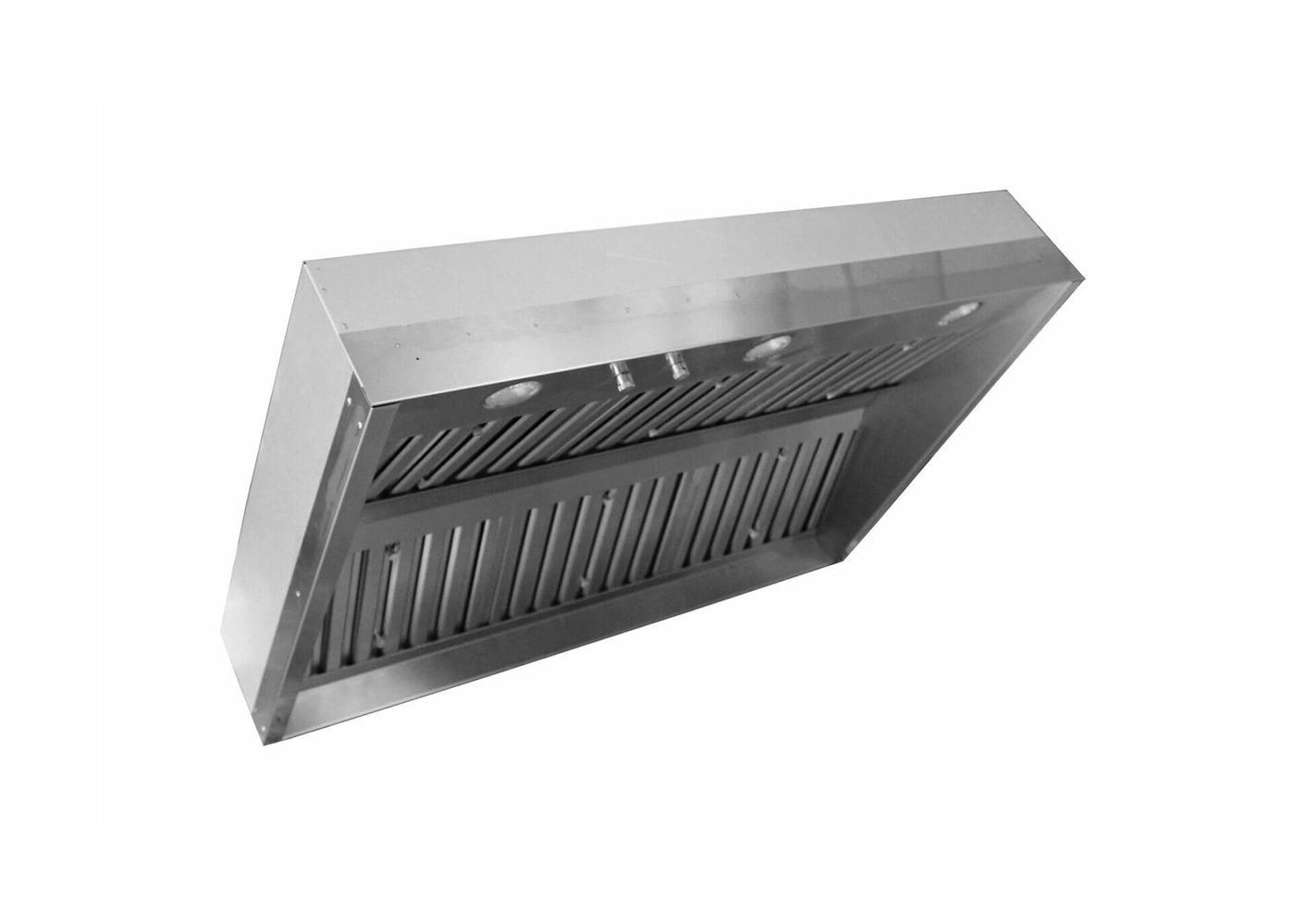

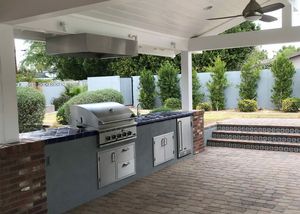

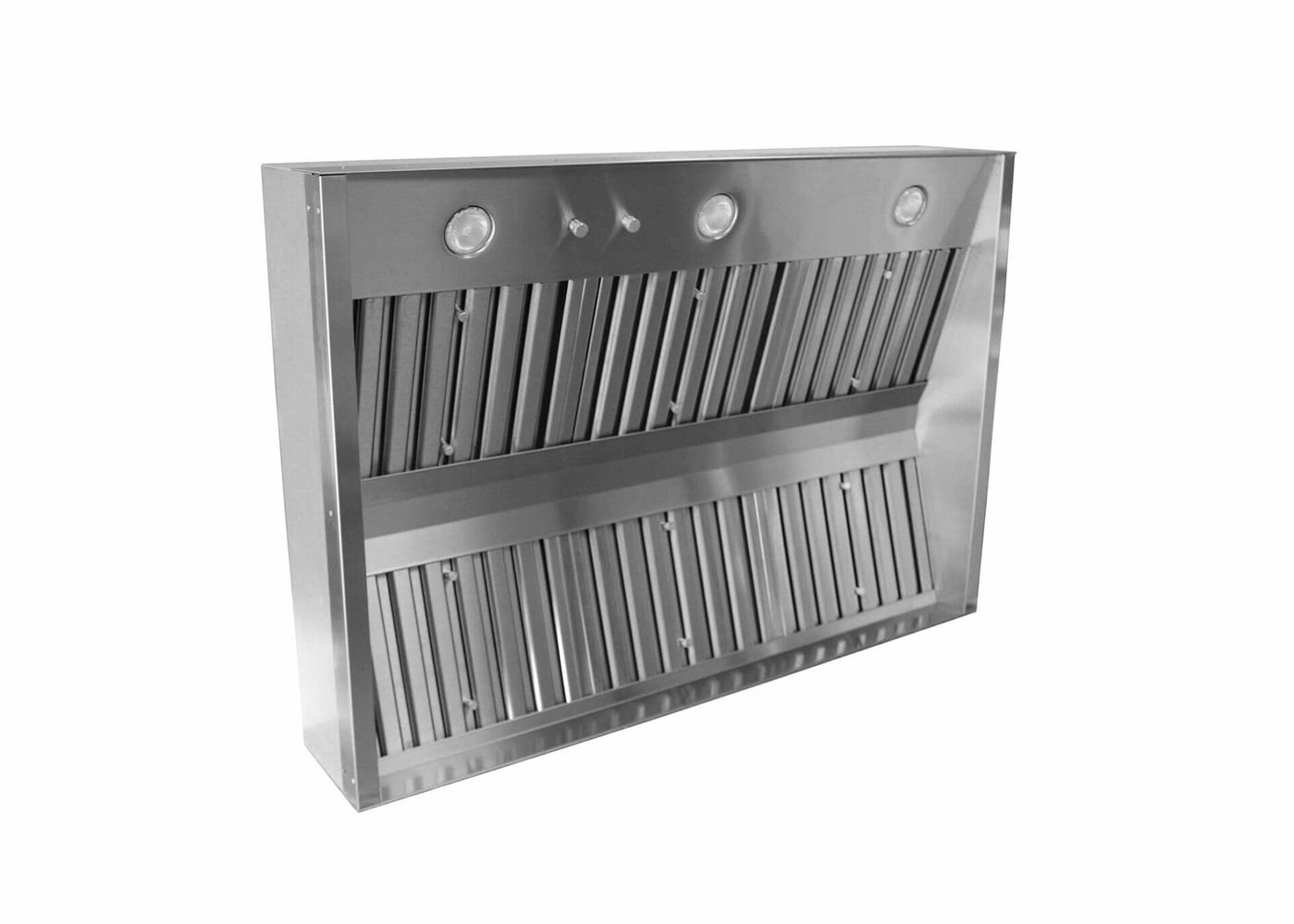

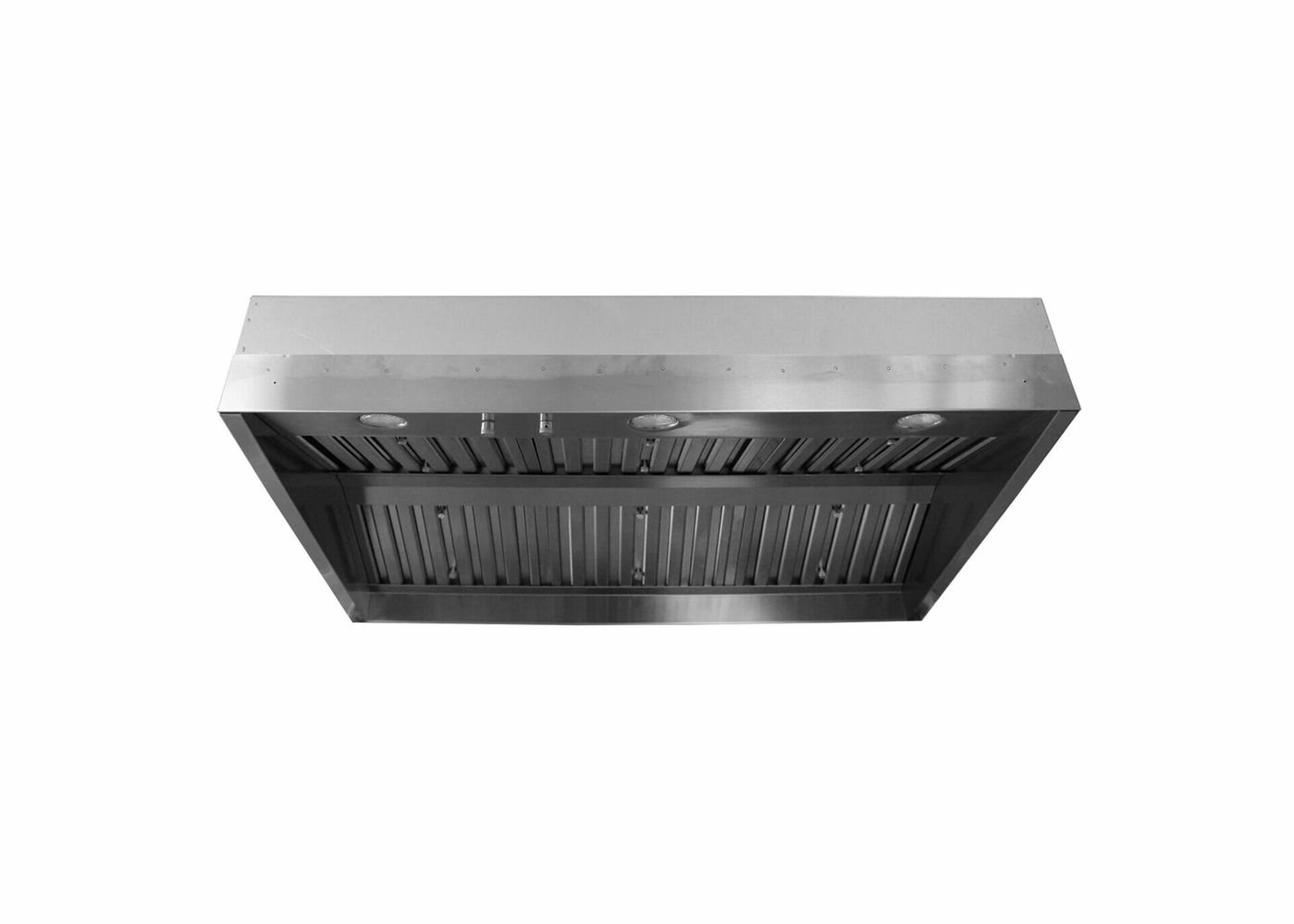

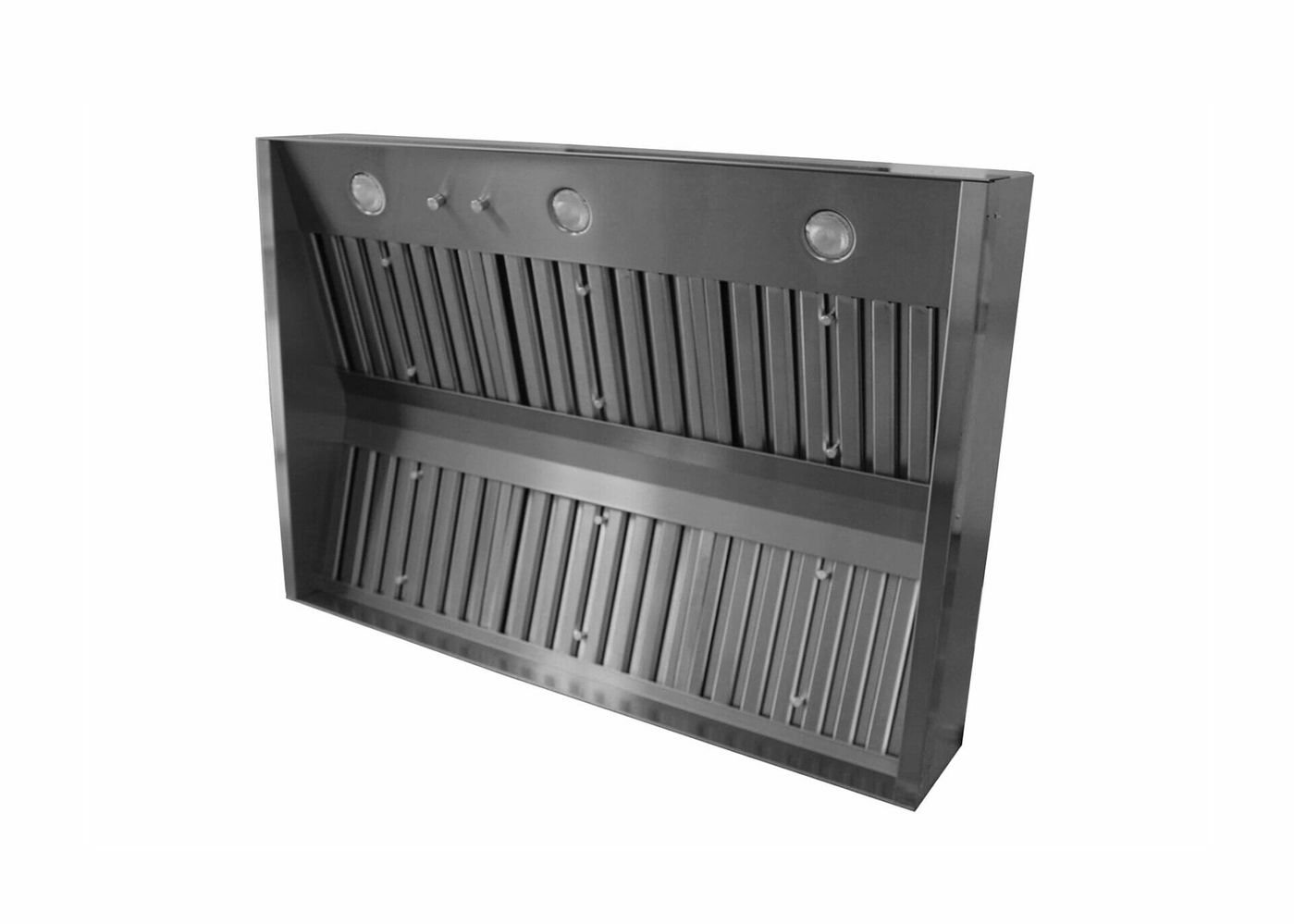

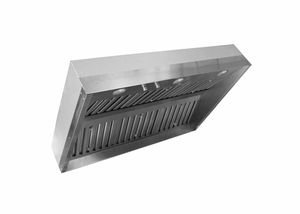

L7200 Series Style Outdoor
Available in 36”, 42”, 48”, 54”, 60”, 66” and 72” widths
Generously proportioned 32” depth of liner provides an exceptional capture area and performance
Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).
Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)
Proprietary internally-sealed 3-speed motors deliver 1200 CFM or 2300 CFM
Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)
Design of the stainless steel commercial baffle filters adds a professional form and superior performance
Optional in-line blowers deliver 1266 CFM
Cool touch knurled knobs for easy control.
For horizontal discharge, a 90 degree elbow is placed directly on top.
36”, 42”, 48”, 54”, 60”, 66” & 72”
Proprietary internally-sealed 3-speed motors deliver 1200 CFM or 2300 CFM
Optional in-line blowers deliver 1266 CFM
Heavy gauge commercial stainless steel (#304 grade with #4 brush finish)
Dimmable 50 watt halogen lights
Four 12” by 14” baffle filters improve performance (six or eight filters on larger models)
Design of the stainless steel commercial baffle filters adds a professional form and superior performance
Generously proportioned 32” depth of liner provides an exceptional capture area and performance
| Model | WIDTH | CFM / IN-LINE BLOWER (NOT INCLUDED) | DUCT COLLAR |
|---|---|---|---|
| L7236 | 34 ½” | In-Line Blower (not included) | 10″ |
| L7236-12 | 34 ½” | CFM 1200 | 10″ |
| L7242 | 40 ½” | In-Line Blower (not included) | 10″ |
| L7242-12 | 40 ½” | CFM 1200 | 10″ |
| L7248 | 46 ½” | In-Line Blower (not included) | 10″ |
| L7248-12 | 46 ½” | CFM 1200 | 10″ |
| L7254 | 52 ½” | In-Line Blower (not included) | 2" x 10″ |
| L7254-23 | 52 ½” | CFM 2300 | 2" x 10″ |
| L7260 | 58 ½” | In-Line Blower (not included) | 2" x 10″ |
| L7260-23 | 58 ½” | CFM 2300 | 2" x 10″ |
| L7266 | 64 ½” | In-Line Blower (not included) | 2" x 10″ |
| L7266-23 | 64 ½” | CFM 2300 | 2" x 10″ |
| L7272 | 70 ½” | In-Line Blower (not included) | 2" x 10″ |
| L7272-23 | 70 ½” | CFM 2300 | 2" x 10″ |
- Remote blower models are pre-wired for use with most in-line or exterior blowers
- Liners with internal blowers are all pre-wired and pre-assembled
- Top 10” round discharge (two 10” on larger models)
- Durable, dishwasher safe commercial stainless steel baffle filters
- All stainless steel interior design is easy to keep clean and eliminates grease traps
