MARQUEE
Configure Your Hood
Custom Colors and Finishes for our Select Hoods are available on request.
Please note that if you select a brass trim option, the trim will age over time because it is a “living metal.” This trim requires special care and instructions are included in the Installation/User Manual.
Large 3 speed blower operates at a lower RPM reducing the sound level.
Bright LED lighting offers natural looking, 3000K color spectrum. The 36” hood features 2 lights, the 48” hood features 3 lights.
Electronic touch controls for 3 speed blower and LED lights.
Dishwasher safe, commercial style baffle filters for effectively removing airborne contaminants. Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning.
Mounting bars at top and bottom allow for attaching to stud supports. Open top and back design for centered duct location or offset top duct and/or rear offset discharge.
LED light bulbs draw only 6 watts each and energy efficient motors draw only 2.5 amps.
36" & 48”
Arched Front
Hood Width x Depth x Height
36"W x 24"D x 30"H (600 cfm/8" collar)
48"W x 24"D x 30"H (600 cfm/8” collar)
48”W x 24"D x 30"H (1200 cfm/10" collar)
12", 24" and 48" Tall
Custom Duct Cover heights are available
36" (30"H) : 101 lbs
48” (30"H) : 126 lbs
600 CFM models draw approx. 2.7 Amps
1200 CFM models draw approx. 5.4 Amps
Ranges from 1.5-7

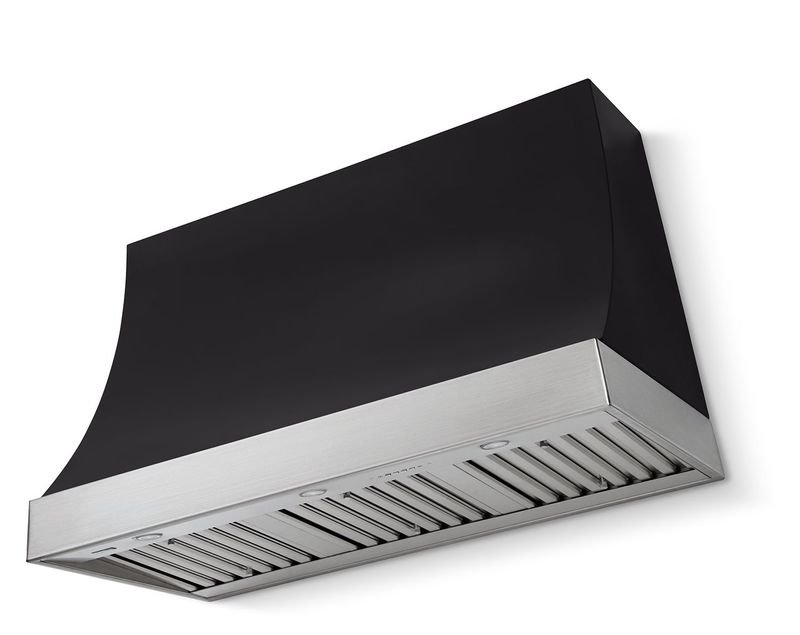

Developed in partnership with two storied European brands, AGA & La Cornue, the Marquee takes center-stage with a commanding presence and elegant, arched style.
| Model | Width | CFM | Duct Collar |
|---|---|---|---|
| MAR4366RC | 36” | 600 | 8″ |
| MAR4486RC | 48” (600 cfm) | 600 | 8″ |
| MAR44812RC | 48” (1200 cfm) | 1200 | 10″ |
