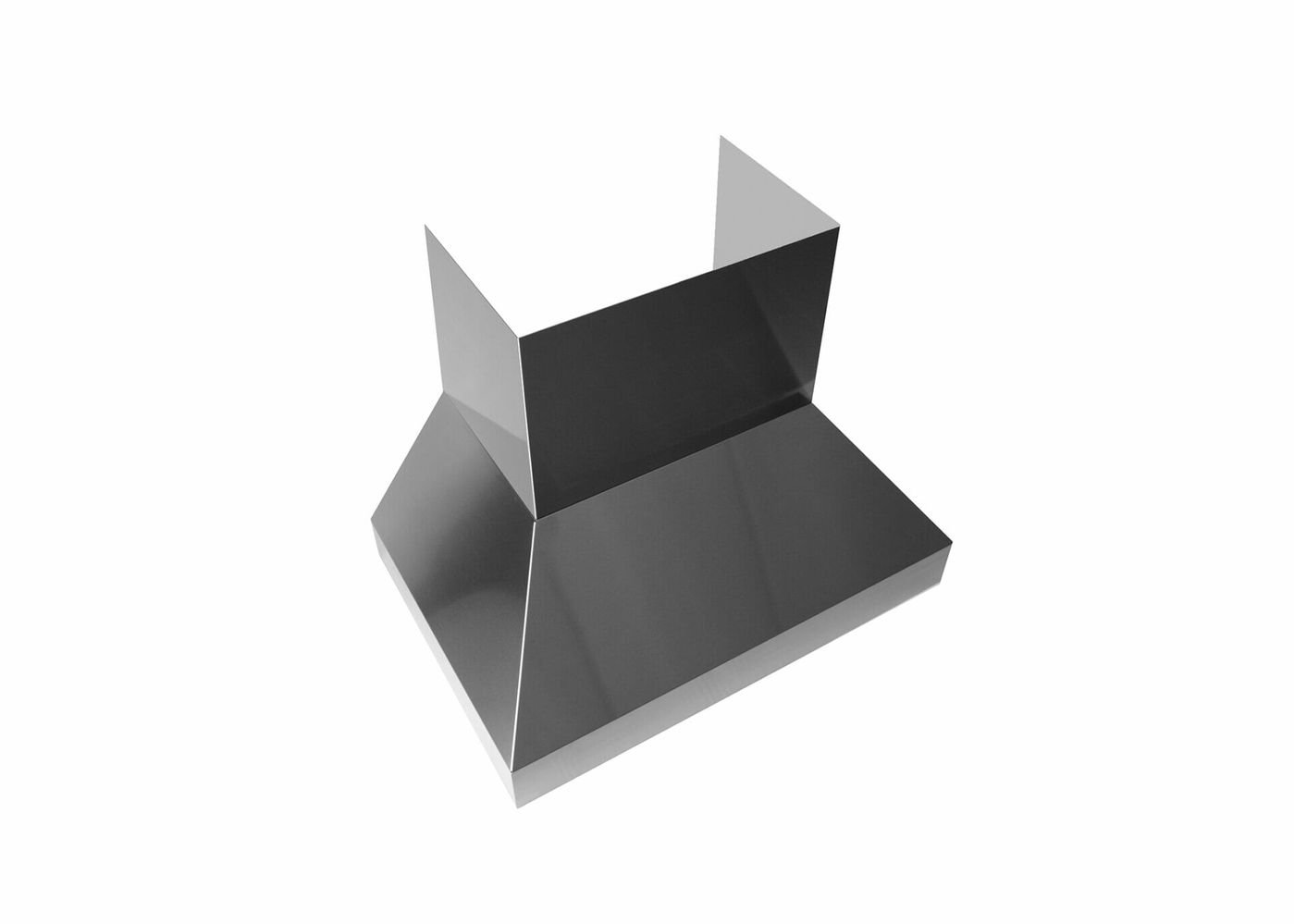

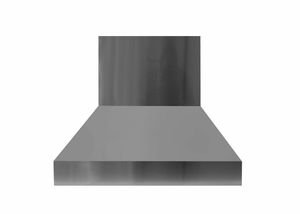

P3200 RC Series

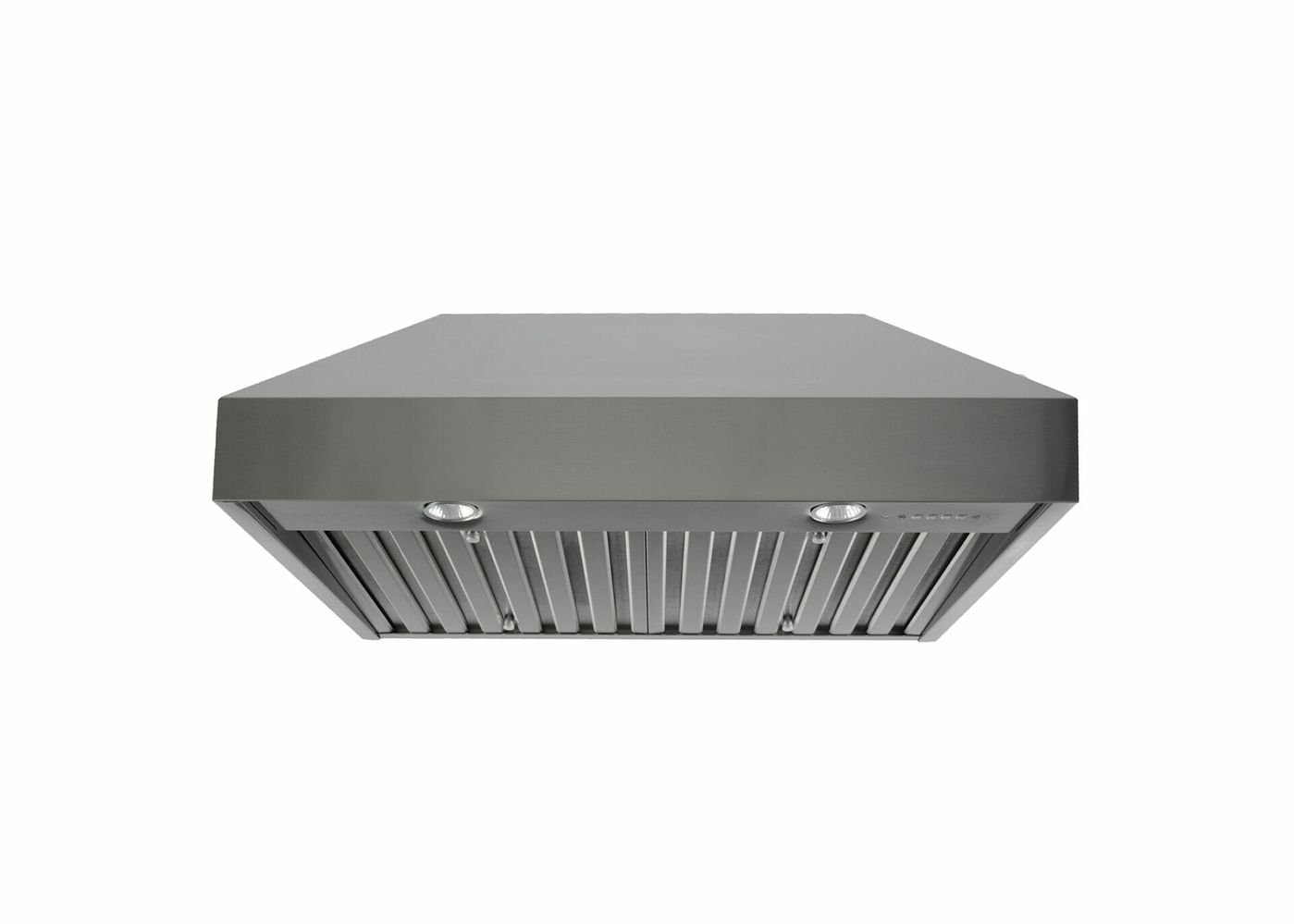

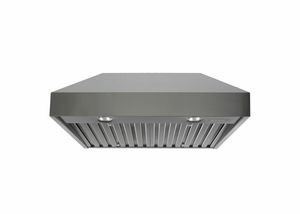

Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction.
CFM and sound tested by Energy Systems Laboratory at Texas A&M University.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound. Sone rating of 1.5-7.

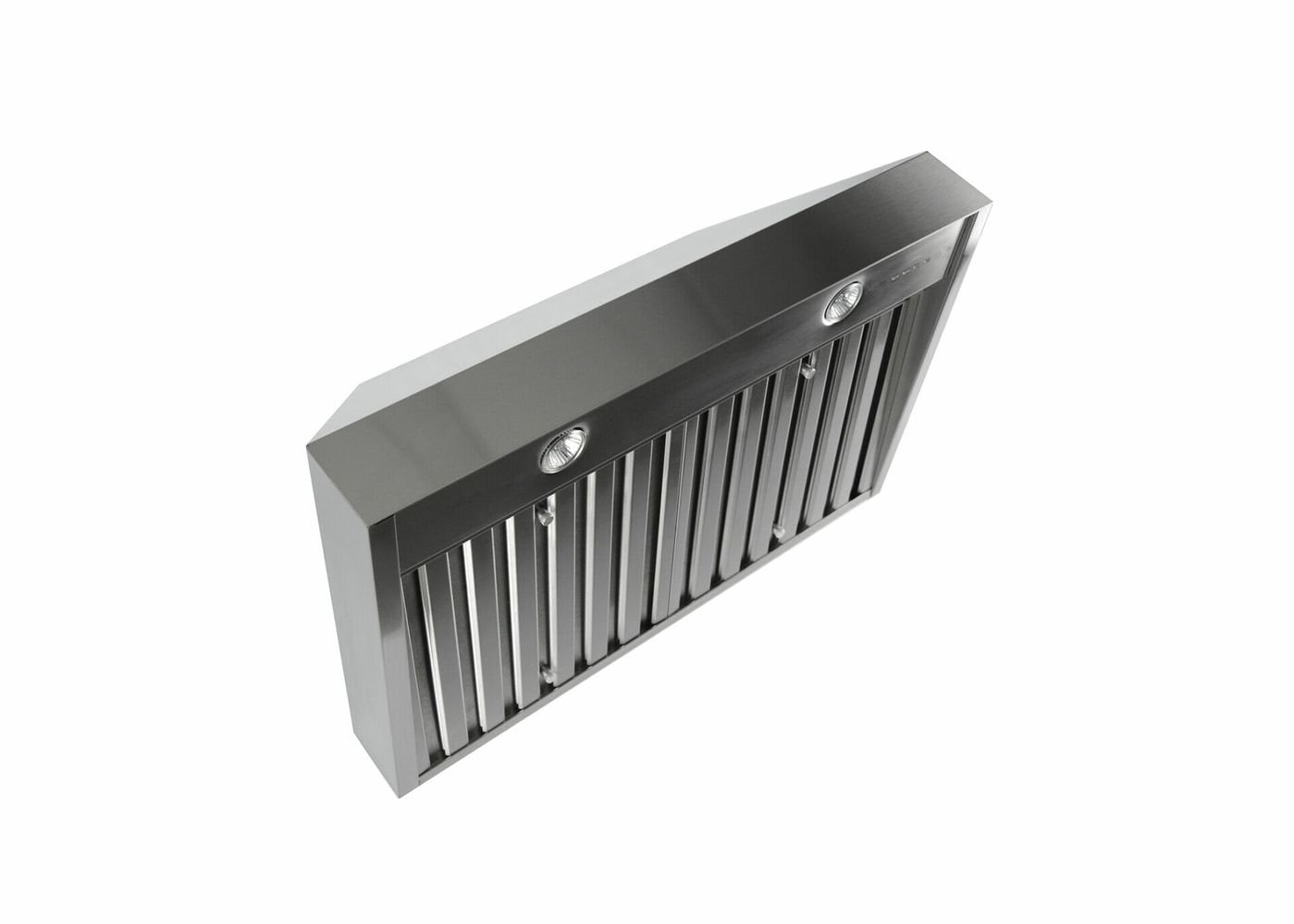

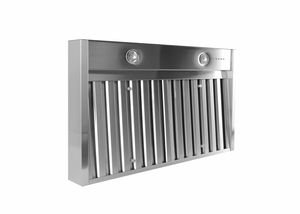

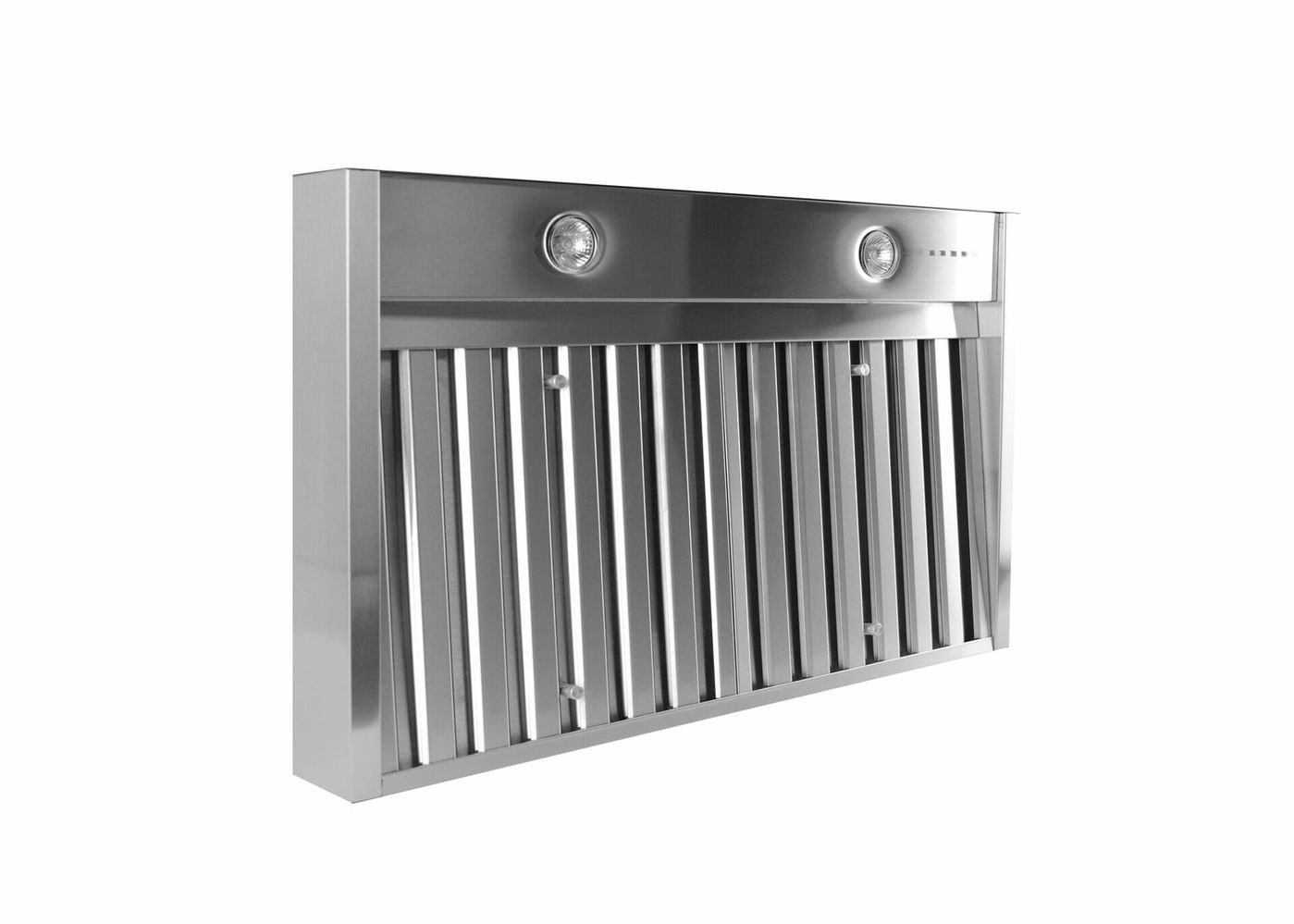

Two large, oversized 14" x 15" stainless steel baffle filters reduce air movement sound and improve ventilation performance (three on the 48" model).

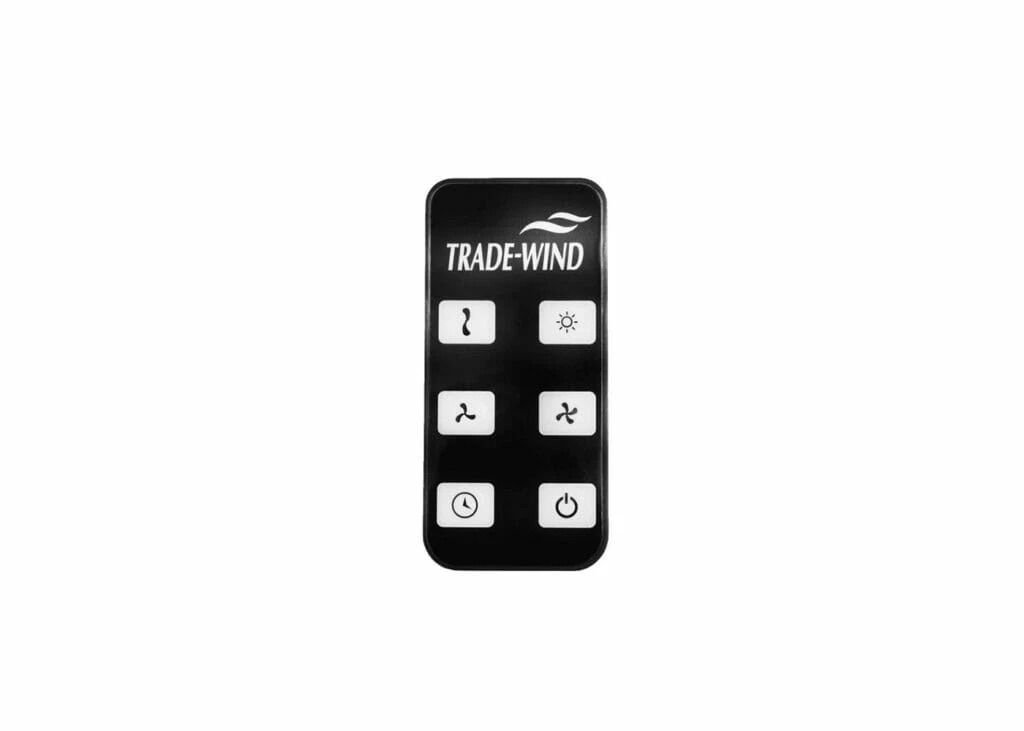

Electronic touch controls with blue LED back lighting. Plus NEW Remote Control with optional 5 minute shut off timer.
Optional ductless conversion kit (MODEL #: 5BL-33-300-DCK1) on 390 CFM Models only.
30", 36", 42" & 48"

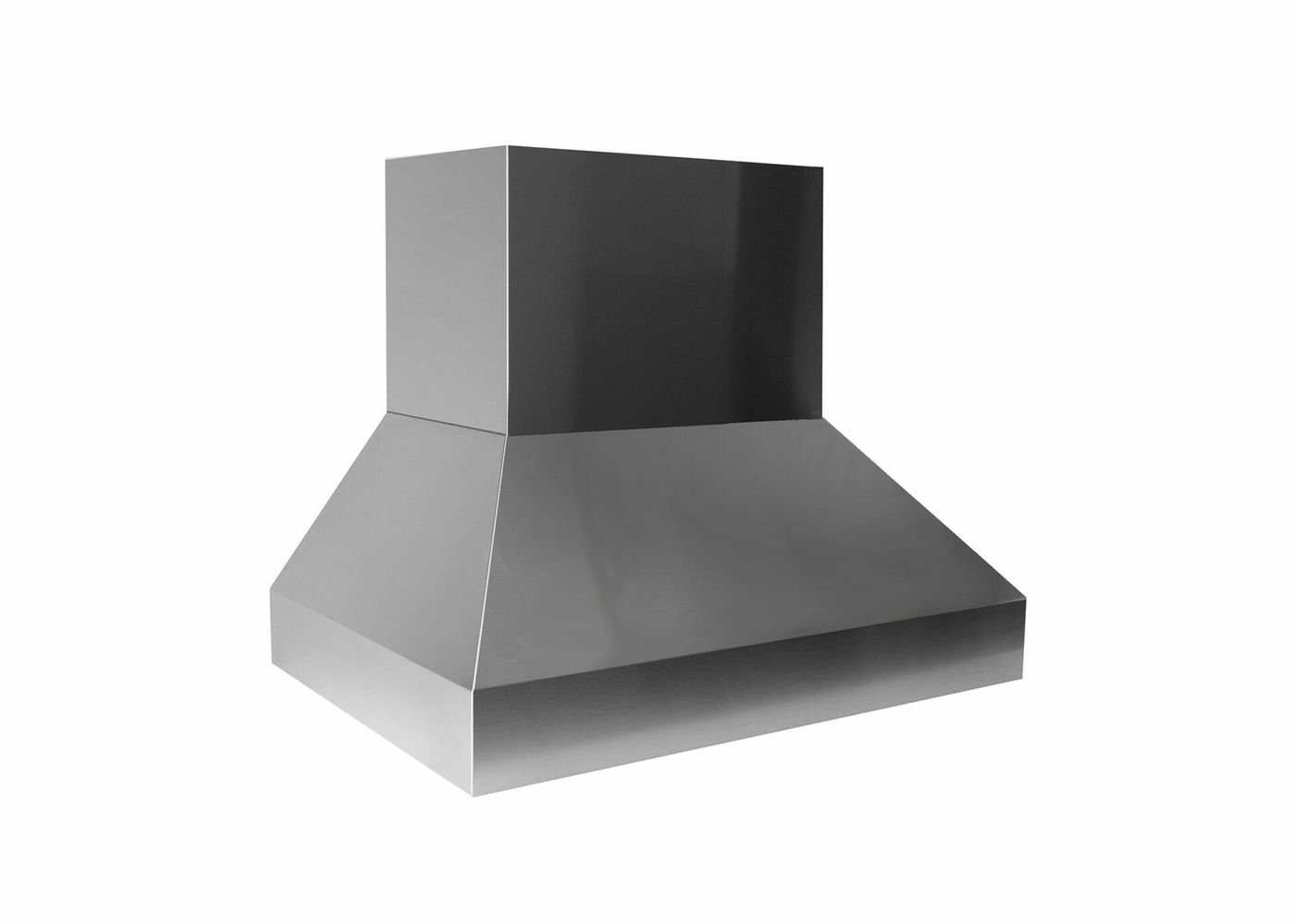

Pyramid
Internal motor models deliver 390 CFM (code compliant), 600 CFM, or 780 CFM
Commercial grade stainless steel (#304 with #4 brush finish)
30", 36" & 42" Models: 2 Oversized 14" x 15" stainless steel Baffle Filters
48" Model: 3 Oversized 14" x 15" stainless steel Baffle Filters
Dishwasher safe with 2 easy-grip handles.

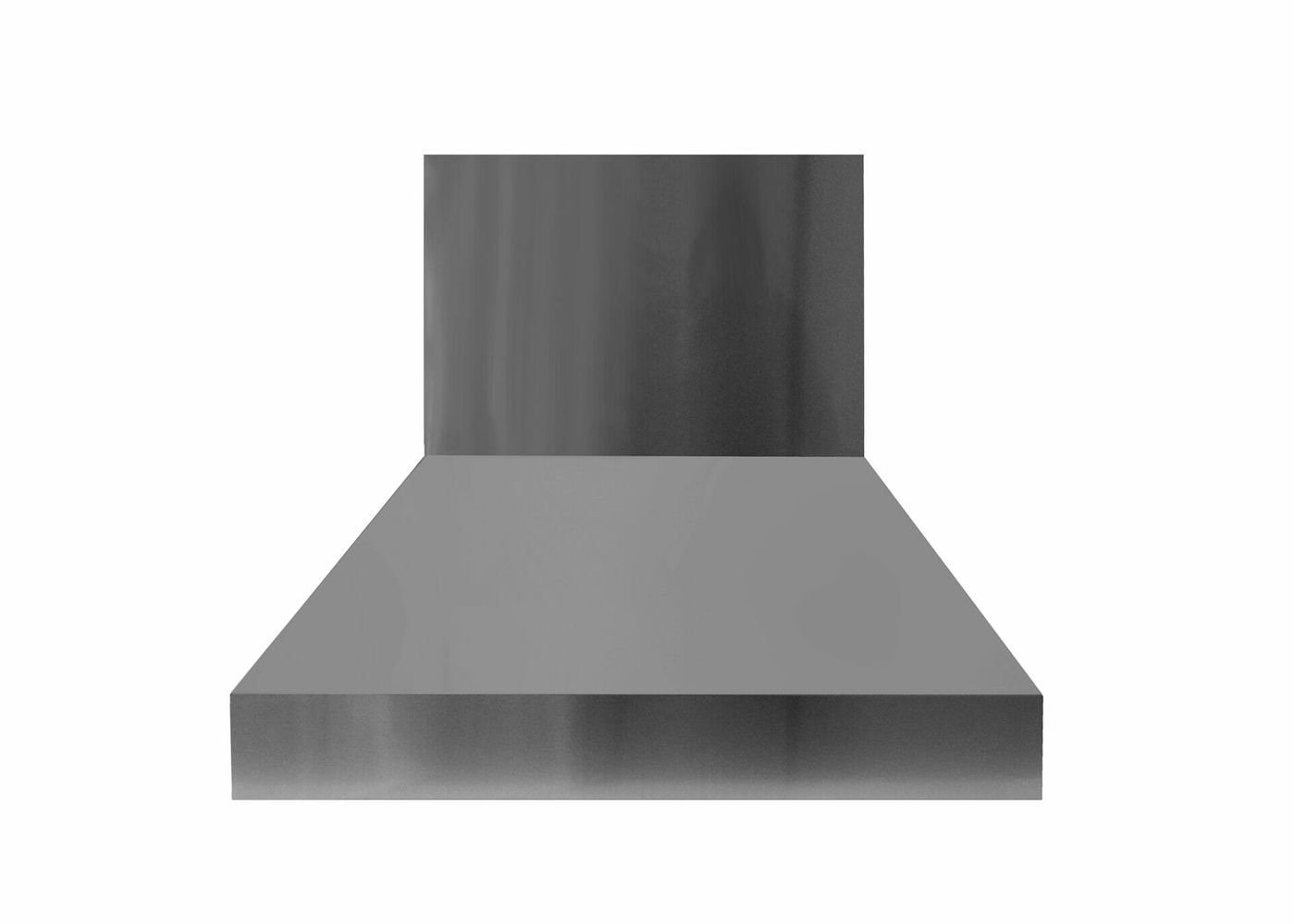

Two-piece, telescopic duct cover to 10′ ceiling included.
Optional telescopic duct cover to 12′ ceiling sold separately.
Installs easily to desired ceiling height with telescopic duct cover.
Wiring diagram label for simple electrical connection.
| Model | WIDTH | CFM | DUCT COLLAR |
|---|---|---|---|
| P32303RC | 30" | 390 | 7" |
| P32306RC | 30" | 600 | 8" |
| P32363RC | 36" | 390 | 7" |
| P32366RC | 36" | 600 | 8" |
| P32423RC | 42" | 390 | 7" |
| P32426RC | 42" | 600 | 8" |
| P32487RC | 48" | 780 | 10" |
- Installs easily in standard size cabinet openings
- Vents out the top with a 7in, 8in, or 10in round discharge opening (size of ducting is dependent on blower selected)
- Dishwasher safe commercial baffle filters
- Easy cleaning; no unsightly screws to clean around
